East Blue Design System — Component Assessment

How It Works

Each component is evaluated against seven criteria. The report is self-contained and versions alongside the design system.

01 — Assess

Evaluate

Inspect the Figma component against 7 criteria covering structure, naming, tokens, states, and Code Connect readiness.

02 — Document

Write

Create a .html file in assessment-src/components/ with the nav, summary, and full assessment.

03 — Build

Assemble

Run node assessment-src/build.js to compile all component files into this page automatically.

04 — Ship

Publish

Commit and push. The report goes live on GitHub Pages — no framework, no build pipeline.

Assessment Criteria

The overall status reflects the weakest criterion — one unresolved issue can block Code Connect linkability.

ID	Criterion	What We Check
C1	Layer Structure & Naming	Layers should use semantic names like `leading-icon` or `content` — not Figma defaults like `Frame 42` or `Group 7`. The hierarchy should be logical and free of unnecessary nesting.
C2	Variant & Property Naming	Variants and properties should follow clear, consistent conventions. Booleans expressed as `true`/`false` (not `yes`/`no`), enum values lowercase and hyphenated.
C3	Token Coverage	All color, spacing, typography, and radius values should be bound to design tokens — not hardcoded. Token coverage determines how easily engineers can map decisions to a native token system.
C4	Native Mappability	The component should map cleanly to a standard native primitive (e.g. `DisclosureGroup`, `Button`, `List`) with no web-only patterns that lack a native equivalent.
C5	Interaction State Coverage	All expected interactive states should be defined as variants — default, pressed, focused, disabled, and error. Missing states force engineers to invent visual behavior.
C6	Asset & Icon Quality	Icons should be vector components (not raster or PNG embeds) and colored using tokens so tinting works natively on both platforms.
C7	Code Connect Linkability	The component should be a proper Figma component set with property names clean enough to map 1:1 to native parameters via Code Connect.

Status Legend

Status	Meaning
Ready	Linkable as-is. Clean structure, maps well to native.
Needs Refinement	Minor issues to resolve before linking.
Requires Rework	Needs redesign before native translation.
Not Applicable	No native equivalent.
Fix	Resolved via Figma MCP. Residual items may remain.

Accordion

6 variants. All tokens connected, naming clean. DS Ready — only Code Connect CLI pending.

Avatar Group

Fix

4 variants (pair/trio/quad/overflow). Property=layout, overflow badge added, inner avatars point to canonical Avatar. Only C7 pending.

Avatar

21 variants. Library-level C2 noted (token typo in shared Variables collection). C7 pending (universal).

Badge

68 variants across State x Level x Type. Status indicator pill with token-bound colors. DS Ready -- only Code Connect CLI pending.

Button

Keep

180 variants. Style(3) × State(3) × Size(5) × Icon Placement(4). Appearance via variable modes (Default/Destructive/White/Subtle) — documented in Figma component description. C7 (code connect) pending.

Checkbox

Keep

33 variants across isSelected × State × Size. Code Connect registration pending (C7).

Dropdown

Fix

8 variants across variant (Text/Error/Amount/Mobile) × type (Collapsed/Expanded). Generic dropdown with list overlay. C2, C5, C6 open.

Input Field

Fix

8 variants across State × isFilled. Base text input for Form Elements group. C2 (boolean naming) open.

Labeled Field

Fix

8 variants across State × isFilled. Enhanced input with leading icon, label, value, action button, and trailing icon. C1, C2 resolved.

Menu Grid

Fix

20 variants (Row × Column, 2–5 × 1–5). Layout container of Service Item instances. C2 (string enums), C5 (only active state), C7 pending.

Recipient Field

Fix

8 variants across State × isFilled. Two-line recipient entry field (56px) with trailing action icons. C6 icon issue open. C1 naming fixed.

Select Field

Fix

8 variants across State × isFilled. Currency/amount selection field with peso sign, flag, and chevron. C6 open.

Title Bar

20 variants across 5 boolean properties. App navigation title bar with optional leading/trailing icons, subtext, control, and title block. C2, C6 open.

Visual Popup

Fix

3 variants (Default / 2 CTA / Version 2). Modal with hero image, title, description, and CTA(s). Variant naming mixed, hero is raster, C5/C7 open.

Accordion Component link

A disclosure row that expands to reveal content. Supports optional leading icon and description via boolean visibility properties. Reduced from 24 to 6 variants (Type × State) with color tokens fully connected.

In Context

How the accordion appears in a real product screen — expanding to reveal content.

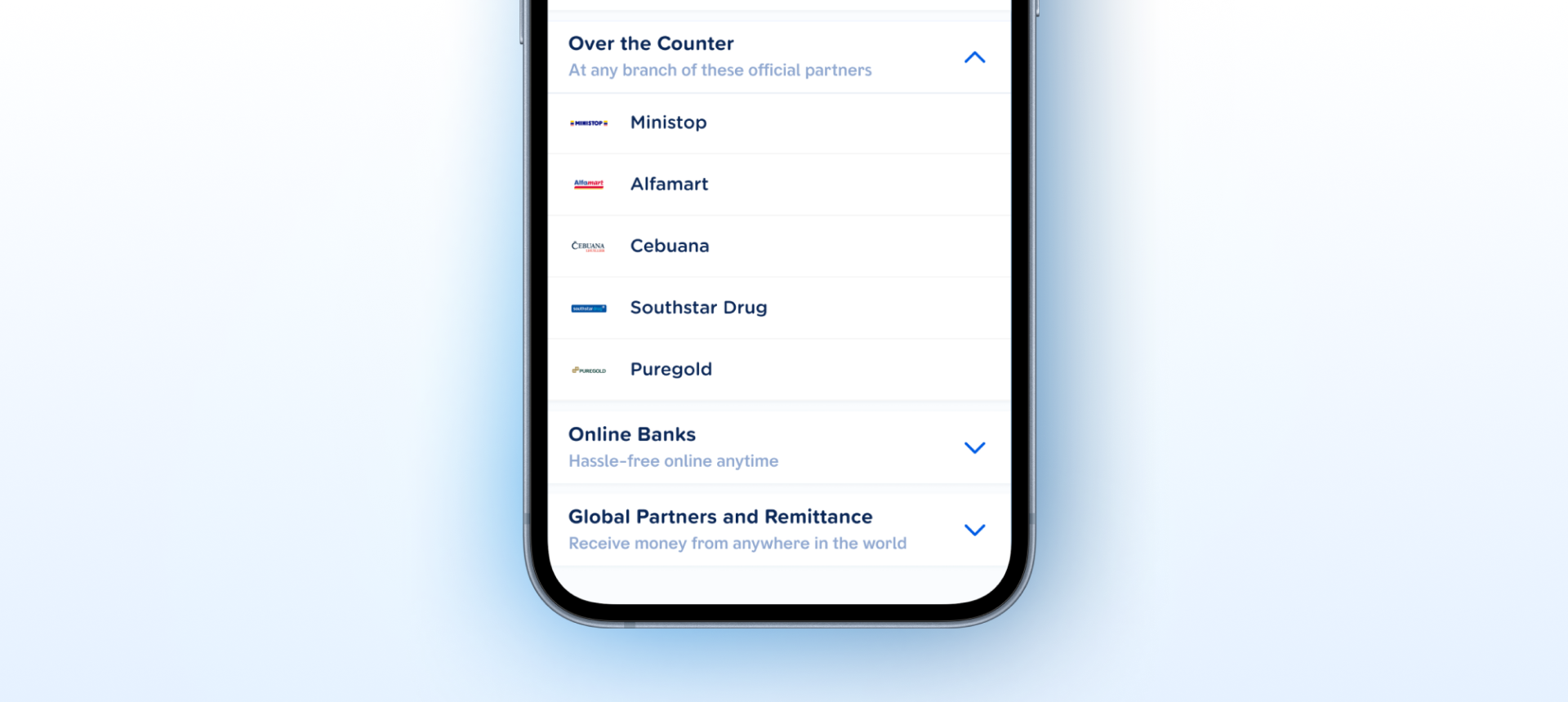

Accordion component shown in a GCash Cash In screen with Over the Counter expanded showing partner list, Online Banks and Global Partners collapsed

Live Preview

Toggle properties to see the accordion update in real time.

Accordion Label

Properties

Type

State

leadingIcon

description

DS Health

Reusable

Pass

Expanded variants include a content-body slot. Boolean visibility on leadingIcon and description lets designers configure the component without extra variants.

Self-contained

Pass

Header row (56px fixed height) and content-body panel are both included. Engineers can implement it as a standalone unit with no external spec needed.

Consistent

Pass

A single variant property (Type) drives collapsed/expanded. leadingIcon and description are boolean show/hide properties — no duplicate variants needed.

Composable

Pass

Semantic layer names (icon-leading, content, trailing-icon). Chevrons are vector instances. The icon slot accepts instances cleanly.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	State=Default	Header row with chevron. Tap to expand/collapse.
Pressed	Yes	Yes	State=Pressed	Visual feedback on touch. Darker surface token.
Disabled	Yes	Yes	State=Disabled	Muted colors. Tap ignored. Chevron dimmed.
Focused (a11y)	N/A	N/A	—	Mobile OS handles focus rings natively.

Resolved Issues

Boolean properties converted from yes/no to true/false (C2)
Layer names corrected to semantic naming: container, icon-leading, content, trailing-icon (C1)
Pressed and disabled interaction states added across all 6 variants (C5)
Expanded content panel with content-body SLOT added to all expanded variants (C4)
Variant set reduced from 24 to 6 — Type × State matrix (C2)
leadingIcon and description converted to boolean visibility properties
Fixed 56px header height applied across all 6 variants
10 design tokens connected — all colors, spacing, and typography fully tokenized (C3)
Annotation instance frame built with nested auto layout (Type × State grid)

Open Issues

Code Connect CLI mappings not registered — no native component files linked (C7)

Styles

Collapsed

DESDEV

Header row only — 56px fixed height. Trailing chevron points down. Tap anywhere in the row to expand.

Label

Properties

State

leadingIcon

description

Properties

TypeCollapsed

StateDefault

leadingIcontrue

descriptionfalse

Layout

Width396px (fill)

Header height56px

Padding H16px

Padding V4px

Leading icon32×32px

Trailing icon32×32px

Corner radius0 (rectangular)

Border1px solid #E5EBF4

Typography

Text StylePrimary/Multi-line Label/Base

Label fontProxima Soft Bold

Label size16px

Label tracking0.25px

Label line-height20px

Text StyleSecondary/Bold/Base

Desc fontBarkAda SemiBold

Desc size14px

Desc tracking0

Desc line-height20px

EBAccordion("Label", isExpanded: .constant(false)) {
    Text("Content")
}

Colors by State

All colors are bound to design tokens from the component variable collection.

Role	Token	Default	Pressed	Disabled
Header bg	surface/default	#FFFFFF	—	—
Pressed bg	surface/pressed	—	#F4F7FB	—
Disabled bg	surface/disabled	—	—	#F8F9FB
Border	border/subtle	#E5EBF4	#E5EBF4	#E5EBF4
Label	text/primary	#0A2757	#0A2757	—
Label (disabled)	text/disabled	—	—	#C2C6CF
Description	text/secondary	#90A8D0	#90A8D0	—
Icon placeholder	icon/placeholder	#C2C6CF	#C2C6CF	#C2C6CF
Chevron	icon-chevron	#005CE5	#005CE5	#C2CFE5

Expanded

DESDEV

Header row (56px) + content-body panel (56px SLOT)=112px total height. Trailing chevron points up. Content-body background uses surface/content token.

Label

Properties

State

leadingIcon

description

Properties

TypeExpanded

StateDefault

leadingIcontrue

descriptionfalse

Layout

Width396px (fill)

Header height56px

Content-body height56px (SLOT)

Total height112px

Padding H16px

Padding V4px

Leading icon32×32px

Trailing icon32×32px

Corner radius0 (rectangular)

Border1px solid #E5EBF4

Divider1px solid #E5EBF4 (header/body)

Typography

Text StylePrimary/Multi-line Label/Base

Label fontProxima Soft Bold

Label size16px

Label tracking0.25px

Label line-height20px

Text StyleSecondary/Bold/Base

Desc fontBarkAda SemiBold

Desc size14px

Desc tracking0

Desc line-height20px

EBAccordion("Label", isExpanded: .constant(true)) {
    Text("Content body slot")
}

Colors by State

Expanded adds the surface/content token for the content-body panel background.

Role	Token	Default	Pressed	Disabled
Header bg	surface/default	#FFFFFF	—	—
Pressed bg	surface/pressed	—	#F4F7FB	—
Disabled bg	surface/disabled	—	—	#F8F9FB
Content bg	surface/content	#F4F7FB	#F4F7FB	#F8F9FB
Border	border/subtle	#E5EBF4	#E5EBF4	#E5EBF4
Label	text/primary	#0A2757	#0A2757	—
Label (disabled)	text/disabled	—	—	#C2C6CF
Description	text/secondary	#90A8D0	#90A8D0	—
Icon placeholder	icon/placeholder	#C2C6CF	#C2C6CF	#C2C6CF
Chevron	icon-chevron	#005CE5	#005CE5	#C2CFE5

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

// Or in Package.swift:
.package(
    url: "https://github.com/AY-Org/eb-ds-ios",
    from: "1.0.0"
)

Android — Gradle (Kotlin DSL)

// build.gradle.kts (app)
dependencies {
    implementation("com.eastblue.ds:accordion:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.accordion.*  // Compose

Package not yet published. These are the planned distribution paths. API shape is final — native implementation is pending.

Property Mapping

Every row maps a Figma component property to its native equivalent.

Figma Property	SwiftUI	Compose
`Type=Collapsed`	`isExpanded: false`	`isExpanded=false`
`Type=Expanded`	`isExpanded: true`	`isExpanded=true`
`State=Disabled`	`.disabled(true)`	`enabled=false`
`leadingIcon=true`	`leadingIcon: Image?`	`leadingIcon: @Composable (() -> Unit)?`
`description=true`	`description: String?`	`description: String?`
`Content-Body (SLOT)`	`content: () -> some View`	`content: @Composable () -> Unit`

SwiftUI

ios/Components/Accordion/EBAccordion.swift

Jetpack Compose

android/components/accordion/EBAccordion.kt

Usage Snippets Planned API

Basic Accordion

// Basic
EBAccordion("Settings", isExpanded: $isExpanded) {
    Text("Content goes here")
}

// With leading icon
EBAccordion("Settings",
    isExpanded: $isExpanded,
    leadingIcon: Image(systemName: "gear")
) {
    Text("Content")
}

// With description
EBAccordion("Settings",
    description: "Manage your preferences",
    isExpanded: $isExpanded
) {
    Text("Content")
}

// Disabled
EBAccordion("Settings", isExpanded: $isExpanded) {
    Text("Content")
}
.disabled(true)

// Basic
EBAccordion(
    title = "Settings",
    isExpanded = isExpanded,
    onExpandedChange = { isExpanded = it }
) {
    Text("Content goes here")
}

// With leading icon
EBAccordion(
    title = "Settings",
    isExpanded = isExpanded,
    onExpandedChange = { isExpanded = it },
    leadingIcon = { Icon(Icons.Filled.Settings, null) }
) {
    Text("Content")
}

// Disabled
EBAccordion(
    title = "Settings",
    isExpanded = isExpanded,
    onExpandedChange = {},
    enabled = false
) {
    Text("Content")
}

Requirement	iOS	Android
Min touch target	`44 × 44pt` (full header row)	`48 × 48dp` (full header row)
Expand/collapse	`.accessibilityAction(.default)` toggles	`onClick` handler on header
State announcement	`.accessibilityValue("expanded"/"collapsed")`	`expandedState` semantics
Disabled	`.disabled(true)` — announced by VoiceOver	`enabled=false`
Content-body	Automatically read by screen reader when expanded
Chevron icon	`.accessibilityHidden(true)` — decorative	`contentDescription=null` — decorative

Usage Guidelines

Do

Use Accordion for progressive disclosure — hiding secondary content until the user needs it.

Don't

Nest Accordions more than one level deep — it creates confusing navigation.

Do

Use description text for context that helps users decide whether to expand.

Don't

Put critical information inside collapsed Accordions — users may miss it.

Do

Use leadingIcon to reinforce the section's topic — gears for settings, bell for notifications.

Don't

Use Accordion for content the user needs to compare side-by-side — use tabs instead.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Semantic names across all variants: `container`, `icon-leading`, `content`, `trailing-icon`.
C2	Variant & Property Naming	Ready	Boolean properties use `true`/`false`. Variant keys use `key=value` syntax. `leadingIcon` and `description` are boolean visibility props.
C3	Token Coverage	Ready	10 tokens bound across all 6 variants. All colors, spacing, and typography fully tokenized.
C4	Native Mappability	Ready	Header + content-body SLOT maps cleanly to `DisclosureGroup` (SwiftUI) and `AnimatedVisibility` (Compose).
C5	Interaction State Coverage	Ready	Default, pressed, and disabled states covered across all 6 variants. Focus ring N/A — mobile OS handles natively.
C6	Asset & Icon Quality	Ready	Chevrons are vector component instances. Leading icon is a SLOT placeholder accepting any icon instance.
C7	Code Connect Linkability	Needs Refinement	No Code Connect mappings registered. Property structure is clean and ready for mapping — suggested paths below.

Code Connect

Aspect	Status	Notes
Component type	Ready	Proper Figma component set.
Variant naming	Ready	`key=value` syntax with `true`/`false` booleans.
Property naming	Ready	Clean 1:1 mapping to native params.
Layer naming	Ready	`container`, `icon-leading`, `content`, `trailing-icon`.
Token coverage	Ready	All 10 tokens bound — colors, spacing, and typography.
Asset quality	Ready	Chevrons are vector component instances. Icon slot is SLOT type.
Code Connect	Not Mapped	No mappings registered. Suggested paths below.

Variants Inventory (6 total)

2 Type values × 3 State values. leadingIcon and description are boolean visibility properties, not variant axes.

Type	State	Node ID
Collapsed	Default	16870:9289
Expanded	Default	16870:9298
Collapsed	Pressed	16919:864
Expanded	Pressed	16919:877
Collapsed	Disabled	16919:956
Expanded	Disabled	16919:969

1.4.0 — March 2026 Patch

Changes Applied via Figma MCP · node 16870:9288

Leading icon layer re-renamed — All 6 variants had Placeholder reverted after v1.3.0 restructure. Re-applied icon-leading name across all 6 current variants. Fixed

C1 Restored

Custom fonts validated — ProximaSoft-Bold.ttf (700, TTF, GPOS kerning, 959 glyphs) and BarkAda-SemiBold.ttf (600, TTF, GPOS kerning, 1050 glyphs) confirmed native-ready. BarkAda uses PostScript name BarkAda-SemiBold for iOS registration. Validated

Fonts Resolved

1.3.0 — March 2026 Minor

Changes Applied via Figma MCP · node 16870:9288

Variant set reduced from 24 to 6 — leadingIcon and description converted from variant axes to boolean visibility properties. Component set now has 2 Type values (Collapsed / Expanded) × 3 State values (Default / Pressed / Disabled)=6 variants total. Refined

C2 Improved

Fixed 56px header height — Applied consistent fixed height across all 6 variant headers for reliable layout in native implementations. Refined

C4 Improved

Color tokens connected — 10 design system variables bound across all 6 variants: surface/default, border/subtle, text/primary, text/secondary, icon/placeholder, icon-chevron, surface/pressed, surface/content, surface/disabled, text/disabled. Fully resolves C3. Fixed

C3 Resolved

Code Connect property renamed — labelDescription → description for cleaner 1:1 mapping to native params. Refined

C7 Prep

Annotation instance frame added — Type × State grid built with nested auto layout (VERTICAL outer → HORIZONTAL rows → VERTICAL cells). White card, #E5EBF4 border, 16px radius, Menlo annotation labels. Added

Annotation

1.2.0 — March 2026 Minor

Changes Applied via Figma MCP · node 16870:9288

Added expanded content panel (content-body) — All 12 expanded variants resized from 62px to 142px. A content-body frame (360×80px) added at y=62 inside each container. Background: #F4F7FB (surface/content token). Border: #E5EBF4. Fully resolves C4. Fixed

C4 Resolved

1.1.0 — March 2026 Minor

Changes Applied via Figma MCP · node 16870:9288

Added state=pressed and state=disabled variants — 16 new variants cloned and styled. Component set expanded from 8 to 24 variants. state property added with values default / pressed / disabled. Fully resolves C5. Fixed

C5 Resolved

1.0.1 — March 2026 Patch

Changes Applied via Figma MCP · node 16830:2025

Frame renamed to container — All 8 root container frames renamed from Frame to container. Fixed

C1 Partial

Placeholder renamed to icon-leading — All 4 leading icon instances renamed from Placeholder to icon-leading. Fixed

C1 Partial

Boolean props converted to true/false — All 8 variant names updated. leading icon and label description converted from yes/no to true/false. Fully resolves C2. Fixed

C2 Resolved

Expanded content panel — Resolved in v1.2.0. content-body frame added to all 12 expanded variants. Fixed in 1.2.0

C4 Resolved

Interaction states: pressed / disabled — Resolved in v1.1.0. 16 new variants added across all type/icon/desc combinations. Fixed in 1.1.0

C5 Resolved

Code Connect mappings — No native component files or Code Connect CLI mappings registered yet. Still Open

C7 Open

Avatar Group FixNeeds RefinementComponent link

Stacked/overlapping avatars for participant lists — conversation members, shared documents, collaboration indicators. 4 variants: layout=pair (2), layout=trio (3), layout=quad (4), and layout=overflow (3 + "+N" badge). Fixed 48×48 container with 24×24 inner avatars.

All structural issues resolved

Property renamed to layout with semantic values ✓. Overflow variant added ✓. Inner avatars repointed to canonical Avatar via instance swap ✓. Only C7 (Code Connect) remains — tracked universally across all components.

In Context

How the avatar group appears in a real product screen — conversation list where grouped chats display stacked avatars (DX Team, David's Surprise Party) alongside single-avatar threads.

Live Preview

Toggle count to see the avatar group update in real time.

Properties

layout

DS Health

Reusable

Pass

Fits participant lists and collaboration indicators. 4 variants (pair/trio/quad/overflow) cover 2–4 visible avatars plus "+N" overflow for larger groups. Fixed 48×48 container — suitable for most list/row contexts.

Self-contained

Pass

Group carries its own overlap positioning, border overlap treatment, and fixed dimensions. All colors token-bound.

Consistent

Pass

Property renamed from no. of initals → layout with semantic values (pair/trio/quad/overflow). C2 resolved. Inherits the main/avatar/brand/intials typo from Avatar's shared variable collection (tracked under Avatar, not an Avatar Group blocker).

Composable

Pass

All inner avatars are instances of the canonical Avatar component (17143:4488). Changes to Avatar now propagate to Avatar Group automatically. Compositional inheritance restored.

Behavior

State	iOS	Android	Figma Property	Notes
2 avatars	Yes	Yes	layout=pair	Diagonal overlap — top-left + bottom-right
3 avatars	Yes	Yes	layout=trio	Triangle arrangement
4 avatars	Yes	Yes	layout=quad	2×2 grid
Overflow (5+)	Yes	Yes	layout=overflow	3 avatars + "+N" badge in bottom-right slot. Uses the same default/light style as the avatar it replaces.
Pressed / Disabled	N/A	N/A	—	Display-only. Tap behavior handled by parent container.

Resolved Issues

Property renamed: no. of initals → layout with semantic values (pair/trio/quad/overflow). Fixes typo, removes spaces/dots, replaces pseudo-numeric strings with true enum values. Maps cleanly to SwiftUI EBAvatarGroupLayout.pair/.trio/.quad/.overflow / Compose EBAvatarGroupLayout.Pair etc. C2 Fixed
Overflow variant layout=overflow added — bottom-right slot shows "+N" badge instead of a 4th avatar. Handles groups larger than 4. C5 Fixed
Inner avatars repointed via instance swap to the canonical Avatar component (17143:4488). Previously referenced a duplicate Avatar at 21:94766 — now all 4 variants inherit from the canonical source. Compositional pattern restored: changes to Avatar will propagate here automatically. C6 Fixed

Open Issues

Code Connect CLI mappings not registered. C7

Variants

4 variants (pair / trio / quad / overflow). All use a 48×48 fixed container with 24×24 inner avatars arranged with intentional overlap to indicate grouping. Overflow replaces the 4th avatar with a "+N" badge for groups larger than 4.

Pair — 2 avatars

Two avatars placed diagonally. Top-left uses dark-initials (brand), bottom-right uses initials-light (default).

Trio — 3 avatars

Three avatars in a triangular arrangement. Two on top (dark + dark), one default at bottom.

Quad — 4 avatars

Four avatars in a 2×2 grid. Top row: brand + brand. Bottom row: default + default.

Overflow — 3 + "+N" badge

Overflow variant — 3 avatars plus a "+N" badge in the bottom-right position. Use when group has 5 or more members. The "+N" uses the default/light avatar style with overridable text content.

Colors by State

Inner avatars use the same tokens as the main Avatar component. See Avatar / Style tab for the full token reference.

Role	Token	Value
Brand avatar bg	main/avatar/brand/bg	#005CE5
Brand avatar border	main/avatar/brand/border	#E5EBF4
Brand avatar initials	main/avatar/brand/intials library typo	#FFFFFF
Default avatar bg	main/avatar/default/bg	#F6F9FD
Default avatar border	main/avatar/default/border	#E5EBF4
Default avatar initials	main/avatar/default/initials	#2340A9

Layout

Property	Value
Container size	48 × 48
Inner avatar size	24 × 24
Inner avatar radius	12px
Inner avatar border	1.5px solid
Overlap offset (2 avatars)	16px diagonal
Overlap offset (3 avatars)	12px horizontal, 24px vertical
Overlap offset (4 avatars)	24px grid step

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:avatar:1.0.0")
}

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
layout=pair	.ebLayout(.pair)	layout=EBAvatarGroupLayout.Pair	2 avatars, diagonal overlap
layout=trio	.ebLayout(.trio)	layout=EBAvatarGroupLayout.Trio	3 avatars, triangle
layout=quad	.ebLayout(.quad)	layout=EBAvatarGroupLayout.Quad	4 avatars, 2×2 grid
layout=overflow	.ebLayout(.overflow)	layout=EBAvatarGroupLayout.Overflow	3 avatars + "+N" badge

SwiftUI

ios/Components/Avatar/EBAvatarGroup.swift

Jetpack Compose

android/components/avatar/EBAvatarGroup.kt

Usage Snippets Planned API

// Pair / trio / quad — pass avatars, layout auto-detected from count
EBAvatarGroup(avatars: [
    EBAvatar(initials: "DM"),
    EBAvatar(initials: "LM"),
    EBAvatar(initials: "AB")
])

// Overflow — pass full list + max visible count
EBAvatarGroup(avatars: allAvatars, maxVisible: 3)
    .ebLayout(.overflow)
    // renders 3 avatars + "+N" if allAvatars.count > 3

// Pair / trio / quad — pass avatars, layout auto-detected from count
EBAvatarGroup(
    avatars = listOf(
        Avatar(initials = "DM"),
        Avatar(initials = "LM"),
        Avatar(initials = "AB")
    )
)

// Overflow — pass full list + maxVisible
EBAvatarGroup(
    avatars = allAvatars,
    maxVisible = 3,
    layout = EBAvatarGroupLayout.Overflow
)

Requirement	iOS	Android
Accessibility label	`.accessibilityLabel("3 participants: Dara, Lara, Alex")`	`contentDescription="3 participants: ..."`
Role	Decorative if not tappable — use `.accessibilityHidden(true)` on individual avatars	Same — prefer single group-level semantic
Tap target	48 × 48 container meets iOS HIG when whole group is tappable	Meets Material 48dp minimum

Usage Guidelines

Do

Use Avatar Group for 2–4 participants in a list item, header, or shared-with indicator.

Don't

Use for counts above 4 without an overflow "+N" badge — users can't infer total count from a cluster alone.

Do

Provide a single group-level accessibility label listing all participants.

Don't

Let each avatar announce separately — creates VoiceOver/TalkBack noise.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Semantic names: `Avatar`, `container`. Top-level component set uses "Avatar Group" — clean.
C2	Variant & Property Naming	Needs Fix	Property `no. of initals` has typo, spaces, and uses string values. Rename to `count` with integer values.
C3	Token Coverage	Ready	All colors bound to Avatar's tokens. Inherits the same typo in `intials` — tracked under Avatar's open issues.
C4	Native Mappability	Partial	Maps to stacked avatars via ZStack (iOS) / Box + offset (Compose). Fixed 48×48 and count=2/3/4 don't match a dynamic native list — API should accept an array.
C5	Interaction State Coverage	Needs Fix	No overflow state for 5+ avatars. Common DS pattern ("+N" badge) is missing.
C6	Asset & Icon Quality	Partial	Inner avatars are hardcoded 24px containers, not Avatar component instances. Breaks compositional inheritance — changes to Avatar won't propagate.
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Variants Inventory (4 total)

layout	Node ID	Size	Notes
pair	18276:4555	48 × 48	2 avatars — diagonal
trio	18276:4558	48 × 48	3 avatars — triangle
quad	18276:4562	48 × 48	4 avatars — 2×2 grid
overflow	18276:4585	48 × 48	3 avatars + "+N" overflow badge

1.0.0 — April 2026 Initial

1.1.0 — April 2026 Minor

Structural closure · node 18276:4554

Property renamed — no. of initals → layout. Values changed from pseudo-numeric strings (2/3/4/5+) to semantic enum values (pair/trio/quad/overflow). Fixes typo, spaces, and dots in one pass. Clean native enum mapping. Fixed

C2 Fixed

Overflow variant added — layout=overflow displays 3 avatars + a "+N" badge in the 4th slot. Handles groups larger than 4. Added

C5 Fixed

Inner avatars repointed to canonical Avatar — Previously referenced a duplicate Avatar component at 21:94766. All 4 variants now use instances of the canonical Avatar at 17143:4488. Compositional inheritance restored. Swapped

C6 Fixed

1.0.0 — April 2026 Initial

Initial Assessment · node 21:94828

Component assessed — 3 variants (2/3/4 avatars) in a fixed 48×48 container. Used for participant lists, collaboration indicators. Documented

Initial

Property name has typo and spaces — no. of initals: missing second "i", contains dot + space. Values are strings instead of integers. Blocks native enum mapping. Fixed in 1.1.0

C2 Fixed

No overflow variant — Component supports only 2/3/4 avatars. Most DS patterns include a "+N" overflow badge for groups larger than the max shown. Fixed in 1.1.0

C5 Fixed

Inner avatars hardcoded, not Avatar instances — The 24px child avatars are duplicated as plain containers inside this component. If the main Avatar changes, this group won't inherit updates. Fixed in 1.1.0

C6 Fixed

Code Connect mappings — No CLI mappings registered yet. Open

C7 Open

Avatar Component link

A circular display element showing user initials or a profile image. Supports 7 sizes (20px-90px) and 3 types (dark initials, light initials, image). Used when a profile image is unavailable or for visual user identification.

In Context

How the avatar appears in a real product screen — Contacts list with Favorites row (brand fill + default fill avatars in circular display).

Live Preview

Toggle type and size to see the avatar update in real time.

Properties

Type

Size

DS Health

Reusable

Pass

7 sizes from 20px to 90px cover all common avatar placements. 3 types (dark initials, light initials, image) handle fallback and branded scenarios.

Self-contained

Pass

All variants are self-contained with vector ELLIPSE fills, token-bound colors, and editable text. No external assets required.

Consistent

Partial

Token naming follows DS convention (main/avatar/...). Variant naming verified correct (type=initials-light). Border-radius tokenized to radius/radius-round. One C2 issue remaining: token main/avatar/brand/intials has typo (should be initials) — manual rename needed in Figma Variables panel.

Composable

Pass

Fits naturally in headers, list rows, profile screens, chat bubbles, and badge overlays. Simple circular shape composes well with any layout container.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	type + size	Display-only. All 3 types fully defined across 7 sizes.
Pressed	N/A	N/A	--	Display-only component. Tap behavior handled by parent container.
Disabled	N/A	N/A	--	Display-only component. No disabled state.
Focused (a11y)	N/A	N/A	--	Display-only. Focus rings rendered by parent interactive container if needed.

Avatar is display-only. Interaction states (pressed, disabled, focused) are N/A and handled by parent containers.

Resolved Issues

Border-radius: bound to radius/radius-round (99999) across all sizes — previously hardcoded per size (C3)
Border-width: confirmed fixed per size by design — not a token gap (C3)
Raster backgrounds replaced with vector ELLIPSE layers across all 5 affected initials variants (C6)
Avatar Group compound component created (previously a design recommendation) — see sibling component under Avatar group (C2)
Variant property value naming verified on recheck: variant names are correctly hyphenated as type=initials-light in Figma source. Earlier "spaces" report was an MCP output artifact (TypeScript enum generation converts hyphens to spaces). No action required. C2 Verified

Open Issues

Code Connect CLI mappings not registered C7

Noted — Library-level

Token name typo: main/avatar/brand/intials still missing second "i" — should be initials. Lives in the shared Variables collection, not in this component — so it's tracked here for visibility but not counted as an Avatar-level blocker. Fix requires renaming in Figma → Variables panel. C2 Noted

Types

Dark Initials

DESDEV

Blue circle with white initials text. Branded avatar used as default when no photo is available.

Properties

Size

Properties

Typedark-initials

Size64px

EBAvatar("DM", type: .darkInitials, size: .xxLarge)

Colors by Type -- Dark Initials

Display-only component. No interaction states. All colors bound to main/avatar/brand/ tokens.

Role	Token	Value
Circle bg	main/avatar/brand/bg	#005CE5
Circle border	main/avatar/brand/border	#E5EBF4
Initials text	main/avatar/brand/initials	#FFFFFF

Light Initials

DESDEV

Light circle with blue initials text. Neutral variant for non-branded contexts.

Properties

Size

Properties

Typeinitials-light

Size64px

EBAvatar("LM", type: .lightInitials, size: .xxLarge)

Colors by Type -- Light Initials

Display-only component. No interaction states. All colors bound to main/avatar/default/ tokens.

Role	Token	Value
Circle bg	main/avatar/default/bg	#F6F9FD
Circle border	main/avatar/default/border	#E5EBF4
Initials text	main/avatar/default/initials	#2340A9


DESDEV

User profile photo in a circle clip. Falls back to placeholder when image fails to load.

Properties

Size

Properties

Typeimage

Size64px

EBAvatar(imageURL: profileURL, size: .xxLarge)

Colors by Type -- Image

Display-only component. Placeholder colors shown when image has not loaded. All colors bound to main/avatar/placeholder/ tokens.

Role	Token	Value
Placeholder bg	main/avatar/placeholder/bg	#C2CFE5
Placeholder border	main/avatar/placeholder/border	#E5EBF4

Installation Planned API

iOS -- Swift Package Manager

// In Xcode: File -> Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

// Or in Package.swift:
.package(
    url: "https://github.com/AY-Org/eb-ds-ios",
    from: "1.0.0"
)

Android -- Gradle (Kotlin DSL)

// build.gradle.kts (app)
dependencies {
    implementation("com.eastblue.ds:avatar:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.avatar.*  // Compose

Package not yet published. These are the planned distribution paths. API shape is final -- native implementation is pending.

Property Mapping

Every row maps a Figma component property to its native equivalent.

Figma Property	SwiftUI	Compose
`type=dark-initials`	`.darkInitials`	`AvatarType.DarkInitials`
`type=initials-light`	`.lightInitials`	`AvatarType.LightInitials`
`type=image`	`.image(url:)`	`AvatarType.Image(url)`
`size=20px...90px`	`size: AvatarSize`	`size: AvatarSize`

SwiftUI

ios/Components/Avatar/EBAvatar.swift

Jetpack Compose

android/components/avatar/EBAvatar.kt

Usage Snippets Planned API

Dark Initials

// Dark initials
EBAvatar("DM", type: .darkInitials, size: .large)

// Dark initials
EBAvatar(
    initials = "DM",
    type = AvatarType.DarkInitials,
    size = AvatarSize.Large
)

Light Initials

// Light initials
EBAvatar("LM", type: .lightInitials, size: .medium)

// Light initials
EBAvatar(
    initials = "LM",
    type = AvatarType.LightInitials,
    size = AvatarSize.Medium
)


// Image
EBAvatar(imageURL: profileURL, size: .large)

// Image
EBAvatar(
    imageUrl = profileUrl,
    type = AvatarType.Image,
    size = AvatarSize.Large
)

Requirement	iOS	Android
Alt text	`accessibilityLabel("User avatar")`	`contentDescription="User avatar"`
Decorative mode	`isAccessibilityElement=false` (in lists)	`importantForAccessibility=no`
Image loading	`AsyncImage` with placeholder	`SubcomposeAsyncImage` with placeholder

Usage Guidelines

Do

Use dark-initials as default when no photo is available.

Don't

Use image type with placeholder -- use initials instead.

Do

Match avatar size to context (20px in dense lists, 90px in profiles).

Don't

Mix initials types in the same context.

Do

Always pass 2-letter initials (first + last).

Don't

Show single-letter or empty initials.

Do

Provide alt text for image avatars.

Don't

Skip accessibility labels.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Layers named `container`, `background`, `replace here - image`. Simple hierarchy. Minor: some sizes have a child also named `container`.
C2	Variant & Property Naming	Ready	Variant naming resolved (`initials-light`). Token name typo fixed (`main/avatar/brand/initials`). Size values use `px` suffix (minor, no impact on native mapping).
C3	Token Coverage	Partial	8 color tokens, full typography tokens, and `radius/radius-round` connected. Border-width is fixed per size (by design).
C4	Native Mappability	Ready	Maps to custom Circle-clipped view on both platforms. No web-only patterns.
C5	Interaction State Coverage	N/A	Display-only component. No interactive states needed.
C6	Asset & Icon Quality	Ready	All initials variants now use vector ELLIPSE layers. Image type rasters are expected (user photos).
C7	Code Connect Linkability	Needs Refinement	Usage descriptions attached. Variant naming now clean. Token typo remains. No CLI mappings.

Code Connect

Maps type and size properties to native parameters. 21 variants (3 types x 7 sizes). Display-only -- no state dimension.

Type variant dimension

Figma	SwiftUI	Compose
dark-initials	type: .darkInitials	AvatarType.DarkInitials
initials-light	type: .lightInitials	AvatarType.LightInitials
image	imageURL: URL	AvatarType.Image(url)

Size variant dimension

Figma	SwiftUI	Compose
20px	size: .xxSmall	AvatarSize.XXSmall
24px	size: .xSmall	AvatarSize.XSmall
32px	size: .small	AvatarSize.Small
40px	size: .medium	AvatarSize.Medium
48px	size: .large	AvatarSize.Large
64px	size: .xLarge	AvatarSize.XLarge
90px	size: .xxLarge	AvatarSize.XXLarge

Variants Inventory 21 total

3 type × 7 size=21 variants. No interaction state axis (display-only component).

Type	Sizes	Notes	Count
dark-initials	20, 24, 32, 40, 48, 64, 90 px	Brand background, white initials	7
initials-light	20, 24, 32, 40, 48, 64, 90 px	Light background, dark initials	7
image	20, 24, 32, 40, 48, 64, 90 px	Photo fill (raster expected)	7

View full Type × Size breakdown (21 rows)

Type	Size	Raster?	Node ID
dark-initials	20px	--	17143:4489
dark-initials	24px	--	17143:4497
dark-initials	32px	--	17143:4505
dark-initials	40px	--	17143:4513
dark-initials	48px	--	17143:4523
dark-initials	64px	--	17143:4531
dark-initials	90px	--	17143:4539
initials-light	20px	--	17143:4492
initials-light	24px	--	17143:4500
initials-light	32px	--	17143:4508
initials-light	40px	--	17143:4517
initials-light	48px	--	17143:4526
initials-light	64px	--	17143:4535
initials-light	90px	--	17143:4542
image	20px	expected	17143:4495
image	24px	expected	17143:4503
image	32px	expected	17143:4511
image	40px	expected	17143:4521
image	48px	expected	17143:4529
image	64px	expected	17143:4546
image	90px	expected	17143:4548

Raster column: ✗=initials background exported as raster image instead of vector. "expected"=image type uses photos by design.

1.0.0 -- March 2026 Initial

Initial Assessment -- node 17143:4488

Component assessed -- 21 variants documented across type (dark-initials / initials-light / image) x size (20px / 24px / 32px / 40px / 48px / 64px / 90px). Token audit found 8 component-specific color tokens + full typography token set. Documented

Initial

Variant naming resolved -- type=initials - light renamed to type=initials-light across all 7 variants. Now matches dark-initials hyphen style. Fixed

C2 Resolved

Token name typo fixed -- main/avatar/brand/intials corrected to main/avatar/brand/initials. Token now maps correctly to native implementations. Fixed

C2 Resolved

Raster backgrounds replaced -- 5 initials variants (dark-initials 40px/64px, initials-light 40px/64px/90px) now use vector ELLIPSE layers with token-bound fills instead of raster backgrounds. Fixed

C6 Resolved

Border-radius tokenized -- All sizes now use radius/radius-round (99999) instead of hardcoded per-size values (45.213px, 24px, 16px, 12px, 10px). Fixed

C3 Resolved

Code Connect mappings -- Usage descriptions and documentation links attached per variant. No native component files or Code Connect CLI mappings registered yet. Still Open

C7 Open

Badge Component link

A colored pill/tag used to highlight an item's status for quick recognition. 68 variants across State (Primary/Brand/Info/Success/Warning/Danger/Disabled) x Level (Heavy/Medium/Light) x Type (Default/Voucher/Transaction/Dashboard). Display-only component with no interaction states.

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle State, Level, and Type to see the badge update in real time.

Properties

State

Level

Type

DS Health

Reusable

Pass

Universal status indicator used across transaction lists, vouchers, dashboards, and notifications. 7 semantic states and 3 emphasis levels cover all common badge use cases.

Self-contained

Pass

Pure display component. Carries its own background, label color, padding, and border-radius per variant. No external dependencies or slots.

Consistent

Partial

Token naming follows DS convention (main/badge/{semantic}/{level}/). Minor issues: State property names don't match token names (Info vs information, Success vs positive). Danger/Heavy and Disabled/Heavy Transaction variants have hardcoded opacity: 0.90.

Composable

Pass

Simple leaf component. Nests cleanly in list rows, card headers, table cells, and notification banners. No child slots or complex nesting.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	State + Level + Type	Display-only. All 7 states x 3 levels fully defined per type.

Badge is display-only. No interaction states (pressed, focused) exist. Disabled is a visual variant, not an interactive state -- it represents muted/inactive content styling.

Resolved Issues

Hardcoded opacity: 0.90 removed from Danger/Heavy Transaction (21:111576) and Disabled/Heavy Transaction (3714:3863) inner containers. Both now at opacity 1, consistent with the other 66 variants. C3 Fixed
State property values renamed to match token semantic names across all 60 affected variants: Info → Information, Success → Positive, Warning → Notice, Danger → Negative, Disabled → Muted. Figma State values now align 1:1 with token namespace — cleaner Code Connect mapping, no translation layer needed. C2 Fixed

Open Issues

Code Connect CLI mappings not registered C7

Types

4 types with different shapes and sizing: Default (pill), Voucher (bottom-right radius only), Transaction (rounded rect), Dashboard (compact rounded rect). Each type supports 7 states x 3 levels (Primary and Brand are Heavy only).

Default

DESDEV

Pill-shaped badge with full border-radius (99px). Standard status indicator for general use.

Properties

State

Level

Properties

TypeDefault

StatePrimary

LevelHeavy

EBBadge("Label", state: .primary, level: .heavy)

Voucher

DESDEV

Badge with bottom-right radius only (4px). Used on voucher cards and promotional items. Fixed 18px height.

Properties

State

Level

Properties

TypeVoucher

StatePrimary

LevelHeavy

EBBadge("Label", state: .primary, level: .heavy, type: .voucher)

Transaction

DESDEV

Rounded rectangle badge (4px radius). Used in transaction lists and history screens. Compact padding.

Properties

State

Level

Properties

TypeTransaction

StatePrimary

LevelHeavy

EBBadge("Label", state: .primary, level: .heavy, type: .transaction)

Dashboard

DESDEV

Compact rounded rectangle badge (4px radius) with smaller typography (10px). Used in dashboard widgets and summary cards.

Properties

State

Level

Properties

TypeDashboard

StatePrimary

LevelHeavy

EBBadge("Label", state: .primary, level: .heavy, type: .dashboard)

Colors by Appearance Mode

Display-only component. All colors bound to main/badge/{semantic}/{level}/ tokens. Primary and Brand states only support Heavy level.

State	Level	Role	Token	Value
Primary	Heavy	bg	main/badge/primary/heavy/background	#005CE5
Primary	Heavy	label	main/badge/primary/heavy/label	#FFFFFF
Brand	Heavy	bg	main/badge/brand/heavy/background	#1972F9
Brand	Heavy	label	main/badge/brand/heavy/label	#FFFFFF
Info	Light	bg	main/badge/information/light/background	#E5F1FF
Info	Light	label	main/badge/information/light/label	#005CE5
Info	Medium	bg	main/badge/information/medium/background	#D2E5FF
Info	Medium	label	main/badge/information/medium/label	#005CE5
Info	Heavy	bg	main/badge/information/heavy/background	#2340A9
Info	Heavy	label	main/badge/information/heavy/label	#FFFFFF
Success	Light	bg	main/badge/positive/light/background	#E7F8F0
Success	Light	label	main/badge/positive/light/label	#048570
Success	Medium	bg	main/badge/positive/medium/background	#CAF2E0
Success	Medium	label	main/badge/positive/medium/label	#048570
Success	Heavy	bg	main/badge/positive/heavy/background	#12AF80
Success	Heavy	label	main/badge/positive/heavy/label	#FFFFFF
Warning	Light	bg	main/badge/notice/light/background	#FCF0CA
Warning	Light	label	main/badge/notice/light/label	#966F0B
Warning	Medium	bg	main/badge/notice/medium/background	#F7D96E
Warning	Medium	label	main/badge/notice/medium/label	#966F0B
Warning	Heavy	bg	main/badge/notice/heavy/background	#CA970C
Warning	Heavy	label	main/badge/notice/heavy/label	#FFFFFF
Danger	Light	bg	main/badge/negative/light/background	#F8E6E6
Danger	Light	label	main/badge/negative/light/label	#B50707
Danger	Medium	bg	main/badge/negative/medium/background	#F4C7C9
Danger	Medium	label	main/badge/negative/medium/label	#8D0710
Danger	Heavy	bg	main/badge/negative/heavy/background	#D61B2C
Danger	Heavy	label	main/badge/negative/heavy/label	#FFFFFF
Disabled	Light	bg	main/badge/muted/light/background	#C2C5CA
Disabled	Light	label	main/badge/muted/light/label	#FFFFFF
Disabled	Medium	bg	main/badge/muted/medium/background	#9A9FA7
Disabled	Medium	label	main/badge/muted/medium/label	#FFFFFF
Disabled	Heavy	bg	main/badge/muted/heavy/background	#717883
Disabled	Heavy	label	main/badge/muted/heavy/label	#FFFFFF

Layout by Type

Property	Default	Voucher	Transaction	Dashboard
Height	auto	18px (fixed)	auto	auto
Padding H	8px	8px	4px	4px
Padding V	2px (top) / 4px (bottom)	2px (top) / 4px (bottom)	1px (top) / 3px (bottom)	1px
Corner radius	99px (pill)	0/0/4px/0 (BR only)	4px	4px

Typography

Type	Text Style	Font	Size	Tracking	Line-height
Default / Voucher / Transaction	Primary/Label/Fine	Proxima Soft Bold	12px	0.5px	12px
Dashboard	Primary/Label/Tiny	Proxima Soft Bold	10px	0.25px	10px

Installation Planned API

iOS -- Swift Package Manager

// In Xcode: File -> Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

// Or in Package.swift:
.package(
    url: "https://github.com/AY-Org/eb-ds-ios",
    from: "1.0.0"
)

Android -- Gradle (Kotlin DSL)

// build.gradle.kts (app)
dependencies {
    implementation("com.eastblue.ds:badge:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.badge.*  // Compose

Package not yet published. These are the planned distribution paths. API shape is final -- native implementation is pending.

Property Mapping

Every row maps a Figma component property to its native equivalent.

Figma Property	SwiftUI	Compose	Notes
`State=Primary`	`state: .primary`	`BadgeState.Primary`	Heavy level only
`State=Brand`	`state: .brand`	`BadgeState.Brand`	Heavy level only
`State=Info`	`state: .info`	`BadgeState.Info`	Token: information
`State=Success`	`state: .success`	`BadgeState.Success`	Token: positive
`State=Warning`	`state: .warning`	`BadgeState.Warning`	Token: notice
`State=Danger`	`state: .danger`	`BadgeState.Danger`	Token: negative
`State=Disabled`	`state: .disabled`	`BadgeState.Disabled`	Token: muted
`Level=Heavy`	`level: .heavy`	`BadgeLevel.Heavy`	Solid fill, white label
`Level=Medium`	`level: .medium`	`BadgeLevel.Medium`	Mid-tone fill, dark label
`Level=Light`	`level: .light`	`BadgeLevel.Light`	Subtle fill, dark label
`Type=Default`	`type: .default`	`BadgeType.Default`	Pill shape (99px radius)
`Type=Voucher`	`type: .voucher`	`BadgeType.Voucher`	Bottom-right radius only
`Type=Transaction`	`type: .transaction`	`BadgeType.Transaction`	Rounded rect (4px)
`Type=Dashboard`	`type: .dashboard`	`BadgeType.Dashboard`	Compact, smaller font

SwiftUI

ios/Components/Badge/EBBadge.swift

Jetpack Compose

android/components/badge/EBBadge.kt

Usage Snippets Planned API

Default (Pill)

// Success badge -- heavy level
EBBadge("Completed", state: .success, level: .heavy)

// Info badge -- light level
EBBadge("Pending", state: .info, level: .light)

// Success badge -- heavy level
EBBadge(
    text = "Completed",
    state = BadgeState.Success,
    level = BadgeLevel.Heavy
)

// Info badge -- light level
EBBadge(
    text = "Pending",
    state = BadgeState.Info,
    level = BadgeLevel.Light
)

Voucher

EBBadge("50% OFF", state: .danger, level: .heavy, type: .voucher)

EBBadge(
    text = "50% OFF",
    state = BadgeState.Danger,
    level = BadgeLevel.Heavy,
    type = BadgeType.Voucher
)

Transaction

EBBadge("Failed", state: .danger, level: .heavy, type: .transaction)

EBBadge(
    text = "Failed",
    state = BadgeState.Danger,
    level = BadgeLevel.Heavy,
    type = BadgeType.Transaction
)

Dashboard

EBBadge("Active", state: .success, level: .light, type: .dashboard)

EBBadge(
    text = "Active",
    state = BadgeState.Success,
    level = BadgeLevel.Light,
    type = BadgeType.Dashboard
)

Requirement	iOS	Android
Accessibility label	`accessibilityLabel("Status: Completed")`	`contentDescription="Status: Completed"`
Decorative mode	`isAccessibilityElement=false` (when status is conveyed elsewhere)	`importantForAccessibility=no`
Color contrast	Heavy levels meet WCAG AA (4.5:1+)	Heavy levels meet WCAG AA (4.5:1+)
Non-color indicator	Badge text conveys meaning alongside color	Badge text conveys meaning alongside color

Usage Guidelines

Do

Use semantic states that match the content meaning (Success for completed, Danger for failed, Warning for pending).

Don't

Use badges for interactive elements -- badges are display-only status indicators.

Do

Use Heavy level for primary status indicators and Light/Medium for secondary or supporting context.

Don't

Use multiple Heavy badges in the same row -- visual noise. Use one Heavy + rest Light/Medium.

Do

Match badge Type to context: Default for general, Voucher for promos, Transaction for history, Dashboard for summaries.

Don't

Mix badge Types within the same list or group.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Simple single-layer structure: container with text child. Semantic naming.
C2	Variant & Property Naming	Ready	Clean enum properties: State, Level, Type. Minor: State names don't match token semantic names.
C3	Token Coverage	Ready	All colors bound to `main/badge/` tokens. Note: 2 variants have hardcoded `opacity: 0.90`.
C4	Native Mappability	Ready	Maps to custom `EBBadge` on both platforms. Simple text + background shape.
C5	Interaction State Coverage	N/A	Display-only component. No interactive states needed.
C6	Asset & Icon Quality	N/A	No icons or assets. Text-only component.
C7	Code Connect Linkability	Needs Refinement	No CLI mappings registered yet. Property naming is clean and ready for mapping.

Code Connect

Aspect	Status	Notes
Property naming	Ready	Clean enum properties: State (7), Level (3), Type (4). Ready for Code Connect mapping.
Token coverage	Ready	All colors token-bound. Minor opacity inconsistency on 2 variants.
State coverage	N/A	Display-only. No interaction states.
Native component file	Pending	EBBadge.swift / EBBadge.kt not yet created

Variants Inventory (68 total)

7 State values x 3 Level values x 4 Type values=84 theoretical. Primary and Brand only support Heavy level, so actual count is (2 x 1 x 4) + (5 x 3 x 4)=8 + 60=68 variants.

State	Level	Types	Notes
Primary	Heavy	Default, Voucher, Transaction, Dashboard	4 variants
Brand	Heavy	Default, Voucher, Transaction, Dashboard	4 variants
Info	Light / Medium / Heavy	Default, Voucher, Transaction, Dashboard	12 variants
Success	Light / Medium / Heavy	Default, Voucher, Transaction, Dashboard	12 variants
Warning	Light / Medium / Heavy	Default, Voucher, Transaction, Dashboard	12 variants
Danger	Light / Medium / Heavy	Default, Voucher, Transaction, Dashboard	12 variants
Disabled	Light / Medium / Heavy	Default, Voucher, Transaction, Dashboard	12 variants

1.1.0 -- April 2026 Minor

Structural closure -- node 21:111526

Opacity normalized -- Hardcoded opacity: 0.90 removed from Danger/Heavy Transaction (21:111576) and Disabled/Heavy Transaction (3714:3863) inner containers. Both now at opacity 1, consistent with the other 66 variants. Fixed

C3 Fixed

State values renamed to match token semantics -- 60 variants renamed: Info ->Information, Success ->Positive, Warning ->Notice, Danger ->Negative, Disabled ->Muted. Figma State property now aligns 1:1 with token namespace (main/badge/{information|positive|notice|negative|muted}/{level}/). Cleaner Code Connect mapping with no translation layer. Fixed

C2 Fixed

1.0.0 -- April 2026 Initial

Initial Assessment -- node 21:111526

Component assessed -- 68 variants documented across State (Primary/Brand/Info/Success/Warning/Danger/Disabled) x Level (Heavy/Medium/Light) x Type (Default/Voucher/Transaction/Dashboard). Token audit confirms all colors bound to main/badge/{semantic}/{level}/ tokens. Documented

Initial

Hardcoded opacity on 2 variants -- Danger/Heavy and Disabled/Heavy Transaction variants have opacity: 0.90 on container instead of using token-driven values. Inconsistent with other variants. Fixed in 1.1.0

C3 Fixed

State-to-token name mismatch -- Figma property names (Info, Success, Warning, Danger, Disabled) don't match token semantic names (information, positive, notice, negative, muted). Minor friction for automated Code Connect mapping. Fixed in 1.1.0

C2 Fixed

Code Connect mappings -- No CLI mappings registered yet. Property naming is clean and ready for mapping. Open

C7 Open

Button Component link

Used to trigger an action when tapped. The button's Call to Action describes the action that will occur. The Large/Medium Buttons are the default size for the GCash app.

In Context

How the button appears in a real product screen — primary and secondary actions in a bottom sheet.

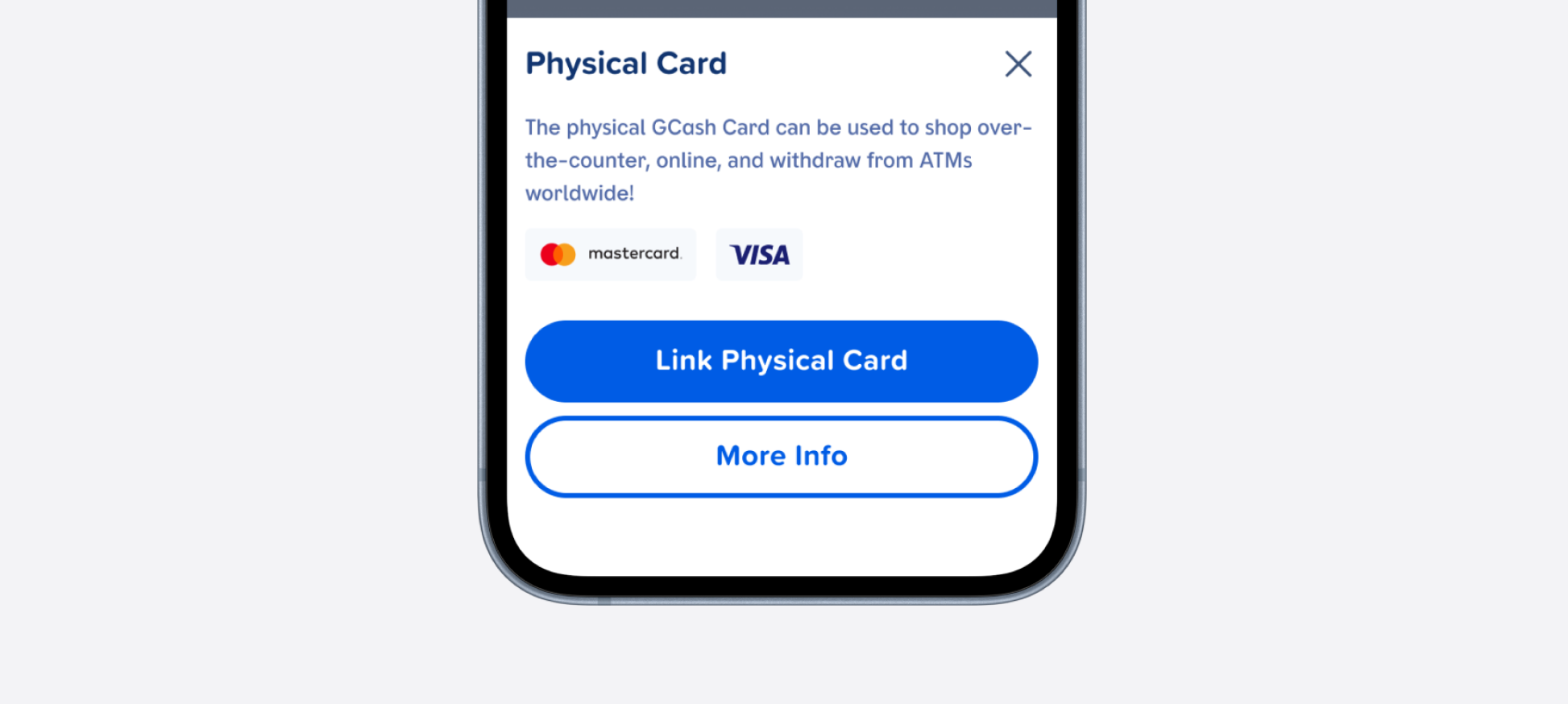

Button component shown in a GCash Physical Card bottom sheet with primary and secondary buttons

Live Preview

Toggle properties and appearance modes to see the button update in real time.

Properties

Style

State

Size

Icon Placement

Mode

Appearance

DS Health

Reusable

Pass

Three styles (Filled/Outline/Text) with four appearance modes cover primary, secondary, tertiary, surface, and destructive action patterns across all contexts.

Self-contained

Pass

All styles, states, and appearance colors are self-contained via variable bindings. Leading Container and Trailing Container SLOT nodes in every variant.

Consistent

Pass

Clean Property=Value naming across all 60 variants. Size, State, and Style are orthogonal variant dimensions. Appearance is a variable mode — no naming conflicts. 12 color variables bound consistently.

Composable

Pass

Style=Filled → Button, Style=Outline → OutlinedButton, Style=Text → TextButton. SLOT nodes support icon+label compositions. Each size has its own text style — clean native mapping.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	State=Default	All four appearance modes fully defined.
Pressed	Yes	Yes	State=Pressed	Darker fill/border using pressed tokens.
Disabled	Yes	Yes	State=Disabled	Muted color tokens applied across all appearances.
Destructive	Yes	Yes	Appearance mode: Destructive	Red tokens via variable mode. Applies to all 3 styles (Filled/Outline/Text).
Focused (a11y)	N/A	N/A	—	Mobile-only component. Focus rings rendered natively by iOS (UIKit/SwiftUI) and Android (Material a11y). No Figma state required.
Loading	Yes	Yes	Native modifier	Handled as an interaction modifier in native code — `.ebLoading(true)` (SwiftUI) / `isLoading=true` (Compose). Removed as a Figma state in v4.0.
Icon Only (a11y)	Yes	Yes	Icon Placement=Icon Only	Square target matches size height. Requires `accessibilityLabel` / `contentDescription` since no visible text.

Resolved Issues

Layer renamed from .base/button/small → container on compact disabled container (C1)
Icon slots (Leading Container, Trailing Container) added to all variants as Figma SLOT nodes (C2)
isError replaced — Destructive is now an appearance variable mode, not a variant property (C2)
v2: Outlined and Text Link moved from appearance to Style variant property (Filled/Outline/Text) (C2)
v2: Size moved from variable modes to variant dimension — each size has its own text style, eliminating font-size variable conflict (C2/C3)
v3: Button variable collection created with 4 appearance modes (Default/Destructive/White/Subtle) — 12 color variables bound to all 60 variants (C3)
v3: Old Button Size and button/variant collections removed (C3)
v3.1: Loading state added — 12 new State=Loading variants with dot indicators replacing label, disabled appearance colors (C5)
v4.0: Icon Placement promoted to component property — replaces leadingIcon/trailingIcon booleans with a single 4-value enum (None/Leading/Trailing/Icon Only). Adds Icon Only square variant for toolbars/navigation (previously a design recommendation). Handoff is now explicit — developers see icon placement as a first-class property. (C2)
v4.0: Appearance Mode documented in Figma component description with SwiftUI/Compose API mapping — addresses the Mode-invisibility handoff gap until Code Connect is implemented. (C7 partial)
v4.0: State simplified to Default/Pressed/Disabled — Loading moved to a native interaction modifier rather than a Figma variant. (C5)
v4.1: button-container wrapper layer removed — outermost component now holds fill/radius/auto-layout directly. Layer depth reduced from 4 to 3 (component → container → label/icon). Inner container retained for icon-label gap grouping. (C1)
v4.1: Large height reduced from 56px → 50px per design review feedback. (C3)
v4.1: New Mode-driven token collection applied — all 60 Filled variants bound to appearance/container/fill (+ pressed/disabled), all 60 Outline variants bound to appearance/stroke/color + new appearance/label/on-surface/color, all 60 Text variants bound to appearance/label/on-surface/color. Switching the parent frame's Variable Mode (Default / Destructive / White / Subtle) now drives appearance across all 180 variants. (C3)
v4.1: New appearance/label/on-surface/color variable created — semantic separation between labels on filled vs surface backgrounds. Eliminates token-purpose confusion between Filled labels (white-on-fill) and Outline/Text labels (color-on-surface). (C3)
v4.1: Text styles renamed to cleaner Primary/Label/Large, Primary/Label/Base, Primary/Label/Small, Primary/Label/Fine (was Primary/Label/Light/* family). (C3)

Open Issues

Code Connect CLI mappings not registered (C7)

Styles

Filled

DESDEV

Solid background with contrasting label. Primary action style. Colors change via Appearance variable mode.

Properties

State

Size

Icon Placement

Mode

Appearance

Properties

AppearanceDefault

StateDefault

SizeLarge

EBButton("Label")
    .ebAppearance(.filled)
    .controlSize(.large)

Colors by Appearance Mode

Token names resolve to different hex values per mode. All 4 modes share the same 4 variables from the Button collection.

Mode	Role	Enabled	Pressed	Disabled
Default	bg	#005CE5	#2340A9	#9BC5FD
Default	label	#FFFFFF	#FFFFFF	#FFFFFF
Destructive	bg	#D81E1E	#B01818	#F5A3A3
Destructive	label	#FFFFFF	#FFFFFF	#FFFFFF
White	bg	#FFFFFF	#EEF2F9	#F5F7FA
White	label	#005CE5	#005CE5	#005CE5
Subtle	bg	#E5F1FF	#D2E5FF	#EEF5FF
Subtle	label	#005CE5	#005CE5	#005CE5

Tokens (v4.1 Mode-driven):appearance/container/fillappearance/container/fill-pressedappearance/container/fill-disabledappearance/label/colorappearance/label/color-pressedappearance/label/color-disabled

Outline

DESDEV

Transparent background with border and accent-colored label. Secondary action style.

Properties

State

Size

Icon Placement

Mode

Appearance

Properties

AppearanceDefault

StateDefault

SizeLarge

EBButton("Label")
    .ebAppearance(.outlined)
    .controlSize(.large)

Colors by Appearance Mode

Outline uses border + label tokens — no background fill. All 4 modes share the same 3 variables from the Button collection.

Mode	Role	Enabled	Pressed	Disabled
Default	border	#005CE5	#2340A9	#9BC5FD
Default	label	#005CE5	#2340A9	#9BC5FD
Destructive	border	#D81E1E	#B01818	#F5A3A3
Destructive	label	#D81E1E	#B01818	#F5A3A3
White	border	#005CE5	#2340A9	#9BC5FD
White	label	#005CE5	#2340A9	#9BC5FD
Subtle	border	#005CE5	#2340A9	#9BC5FD
Subtle	label	#005CE5	#2340A9	#9BC5FD

Tokens (v4.1 Mode-driven):appearance/stroke/colorappearance/stroke/color-pressedappearance/stroke/color-disabledappearance/label/on-surface/colorappearance/label/on-surface/color-pressedappearance/label/on-surface/color-disabled

Text

DESDEV

No background or border. Label only. Tertiary action style.

Properties

State

Size

Icon Placement

Mode

Appearance

Properties

AppearanceDefault

StateDefault

SizeLarge

EBButton("Label")
    .ebAppearance(.textLink)
    .controlSize(.large)

Colors by Appearance Mode

Text style uses label-only tokens — no background or border. All 4 modes share the same 3 variables from the Button collection.

Mode	Role	Enabled	Pressed	Disabled
Default	label	#005CE5	#2340A9	#9BC5FD
Destructive	label	#D81E1E	#B01818	#F5A3A3
White	label	#005CE5	#2340A9	#9BC5FD
Subtle	label	#005CE5	#2340A9	#9BC5FD

Tokens (v4.1 Mode-driven):appearance/label/on-surface/colorappearance/label/on-surface/color-pressedappearance/label/on-surface/color-disabled

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

// Or in Package.swift:
.package(
    url: "https://github.com/AY-Org/eb-ds-ios",
    from: "2.0.0"
)

Android — Gradle (Kotlin DSL)

// build.gradle.kts (app)
dependencies {
    implementation("com.eastblue.ds:button:2.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.button.*  // Compose

Package not yet published. These are the planned distribution paths. API shape is final — native implementation is pending.

Property Mapping

Every row maps a Figma component property to its native equivalent. When a developer selects a variant in Figma, Code Connect will output the corresponding native code using these mappings.

Figma Property	SwiftUI	Compose
`Style=Filled`	`.ebAppearance(.filled)`	`EBButton {}`
`Style=Outline`	`.ebAppearance(.outlined)`	`EBOutlinedButton {}`
`Style=Text`	`.ebAppearance(.textLink)`	`EBTextButton {}`
`Appearance=Default`	(default — omit modifier)	(default — omit colors param)
`Appearance=Destructive`	`.ebColorScheme(.destructive)`	`colors=EBButtonDefaults.destructiveColors()`
`Appearance=White`	`.ebColorScheme(.white)`	`colors=EBButtonDefaults.whiteColors()`
`Appearance=Subtle`	`.ebColorScheme(.subtle)`	`colors=EBButtonDefaults.subtleColors()`
`Size=Large…XSmall`	`controlSize: .large / .regular / .small / .compact / .mini`	`size=EBButtonSize.Large / Medium / Small / Compact / XSmall`
`State=Disabled`	`.disabled(true)`	`enabled=false`
`(Loading — runtime)`	`.ebLoading(true)`	`isLoading=true`
`Icon Placement=None`	(default — text only)	(default — text only)
`Icon Placement=Leading`	`Label("…", systemImage: "…")`	`leadingIcon={ Icon(…) }`
`Icon Placement=Trailing`	`Label + trailing Image`	`trailingIcon={ Icon(…) }`
`Icon Placement=Icon Only`	`EBButton(icon: Image(…), accessibilityLabel: "…")`	`EBButton(contentDescription="…") { Icon(…) }`

SwiftUI

ios/Components/Button/EBButton.swift

Jetpack Compose

android/components/button/EBButton.kt

Usage Snippets Planned API

Filled — Primary action

// Default appearance — Mode resolves at parent (.environment(\.ebAppearance, .default))
EBButton("Save Changes")
    .ebAppearance(.filled)
    .controlSize(.large)

// Destructive appearance
EBButton("Delete Account")
    .ebAppearance(.filled)
    .ebColorScheme(.destructive)

// Icon Placement = Leading
EBButton("Send Money", leadingIcon: Image(systemName: "arrow.up.right"))
    .ebAppearance(.filled)

// Icon Placement = Trailing
EBButton("Continue", trailingIcon: Image(systemName: "chevron.right"))
    .ebAppearance(.filled)

// Icon Placement = Icon Only — square target, accessibility label required
EBButton(icon: Image(systemName: "plus"), accessibilityLabel: "Add item")
    .ebAppearance(.filled)

// Disabled
EBButton("Submit")
    .ebAppearance(.filled)
    .disabled(true)

// Loading — runtime only, not a Figma state
EBButton("Submit")
    .ebAppearance(.filled)
    .ebLoading(true)

// Default appearance — Mode resolves at theme/parent
EBButton(
    onClick = { /* action */ },
    size = EBButtonSize.Large
) {
    Text("Save Changes")
}

// Destructive appearance
EBButton(
    onClick = { /* action */ },
    colors = EBButtonDefaults.destructiveColors()
) {
    Text("Delete Account")
}

// Icon Placement = Leading
EBButton(
    onClick = { },
    leadingIcon = { Icon(Icons.Default.Send, contentDescription = null) }
) {
    Text("Send Money")
}

// Icon Placement = Trailing
EBButton(
    onClick = { },
    trailingIcon = { Icon(Icons.Default.ChevronRight, contentDescription = null) }
) {
    Text("Continue")
}

// Icon Placement = Icon Only — contentDescription required
EBButton(
    onClick = { },
    contentDescription = "Add item"
) {
    Icon(Icons.Default.Add, contentDescription = null)
}

// Disabled
EBButton(
    onClick = { },
    enabled = false
) {
    Text("Submit")
}

// Loading — runtime only, not a Figma state
EBButton(
    onClick = { },
    isLoading = true
) {
    Text("Submit")
}

Outline — Secondary action

// Default
EBButton("Cancel")
    .ebAppearance(.outlined)

// Destructive
EBButton("Remove Item")
    .ebAppearance(.outlined)
    .ebColorScheme(.destructive)

// Icon Placement = Leading
EBButton("Filter", leadingIcon: Image(systemName: "line.3.horizontal.decrease"))
    .ebAppearance(.outlined)

// Icon Placement = Icon Only
EBButton(icon: Image(systemName: "square.and.arrow.up"), accessibilityLabel: "Share")
    .ebAppearance(.outlined)

// Button pair
HStack(spacing: 12) {
    EBButton("Cancel").ebAppearance(.outlined)
    EBButton("Save").ebAppearance(.filled)
}

EBOutlinedButton(
    onClick = { /* action */ }
) {
    Text("Cancel")
}

// Icon Placement = Leading
EBOutlinedButton(
    onClick = { },
    leadingIcon = { Icon(Icons.Default.FilterList, contentDescription = null) }
) {
    Text("Filter")
}

// Icon Placement = Icon Only
EBOutlinedButton(
    onClick = { },
    contentDescription = "Share"
) {
    Icon(Icons.Default.Share, contentDescription = null)
}

// Button pair
Row(horizontalArrangement = Arrangement.spacedBy(12.dp)) {
    EBOutlinedButton(onClick = {}) { Text("Cancel") }
    EBButton(onClick = {}) { Text("Save") }
}

Text — Tertiary action

EBButton("Learn More")
    .ebAppearance(.textLink)
    .controlSize(.small)

// Destructive
EBButton("Remove")
    .ebAppearance(.textLink)
    .ebColorScheme(.destructive)

// Icon Placement = Trailing (common for inline links)
EBButton("Read more", trailingIcon: Image(systemName: "chevron.right"))
    .ebAppearance(.textLink)

EBTextButton(
    onClick = { /* action */ },
    size = EBButtonSize.Small
) {
    Text("Learn More")
}

// Icon Placement = Trailing (common for inline links)
EBTextButton(
    onClick = { },
    trailingIcon = { Icon(Icons.Default.ChevronRight, contentDescription = null) }
) {
    Text("Read more")
}

Requirement	iOS	Android
Min touch target	`44 × 44pt`	`48 × 48dp`
Focus ring	Handled by UIKit/SwiftUI	Handled by Material ripple
Icon-only buttons	`.accessibilityLabel("Send")`	`contentDescription="Send"`
Destructive role	`role: .destructive` — announced by VoiceOver	Use `semantics { role=Role.Button }`
Loading state	`.accessibilityLabel("Loading")` + disable tap	`semantics { stateDescription="Loading" }` + disable click

Usage Guidelines

Do

Use one Filled button per screen area as the primary action. Pair with Outline or Text for secondary.

Don't

Place two filled buttons side by side — they compete for attention and neither reads as primary.

Do

Use Destructive appearance for irreversible actions (delete, remove). Always pair with a confirmation.

Don't

Use Destructive for actions that are simply "negative" but reversible (dismiss, close, decline).

Do

Use White appearance on brand-colored or dark surfaces (hero banners, promotional cards).

Don't

Use White appearance on a white background — the button disappears. Use Default or Subtle instead.

Do

Use Text style for inline or low-emphasis actions (Learn more, View terms, Skip).

Don't

Use Text style for primary form submission — it lacks the visual weight to signal the main action.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	All layers use semantic names. `container`, `#label`, `leadingIcon`, `trailingIcon` consistent across all 60 variants.
C2	Variant & Property Naming	Ready	v3 clean orthogonal dimensions: `Style` (Filled/Outline/Text), `Size` (Large/Medium/Small/Compact/XSmall), `State` (Default/Pressed/Disabled). Appearance via 4 variable modes. `leadingIcon`/`trailingIcon` are SLOT nodes with Boolean component properties.
C3	Token Coverage	Ready	All color values connected to semantic tokens. Layout/sizing driven by `button/size` variable collection (height, padding-h, padding-v, font-size).
C4	Native Mappability	Ready	Maps to `Button`, `OutlinedButton`, `TextButton`. Destructive maps to `role: .destructive` / `contentColor=errorColor`.
C5	Interaction State Coverage	Ready	Default, Pressed, Disabled, Loading covered across all 60 variants. Focus ring is N/A — mobile OS handles natively. Loading uses dot indicators with disabled appearance colors.
C6	Asset & Icon Quality	Ready	Icon slots are Figma SLOT nodes accepting vector icon instances. Boolean properties control visibility.
C7	Code Connect Linkability	Needs Refinement	No CLI mappings registered yet. Property structure is clean and ready for mapping.

Code Connect

Maps v3.2 variant dimensions (Style × Size × State) and variable modes (Appearance) to native parameters. 60 variants × 4 appearance modes=240 visual states.

Style variant dimension

Figma	SwiftUI	Compose
Filled	.ebAppearance(.filled)	EBButton {}
Outline	.ebAppearance(.outlined)	EBOutlinedButton {}
Text	.ebAppearance(.textLink)	EBTextButton {}

Size variant dimension

Figma	SwiftUI	Compose
Large 52px	.controlSize(.large)	size=EBButtonSize.Large
Medium 36px	.controlSize(.regular)	size=EBButtonSize.Medium
Small 28px	.controlSize(.small)	size=EBButtonSize.Small
Compact 28px	.controlSize(.compact)	size=EBButtonSize.Compact
XSmall 24px	.controlSize(.mini)	size=EBButtonSize.XSmall

State variant dimension

Figma	SwiftUI	Compose
Default	(default)	(default)
Pressed	(system)	(system)
Disabled	.disabled(true)	enabled=false
(Loading — runtime)	.ebLoading(true)	isLoading=true

Appearance variable mode

Figma	SwiftUI	Compose
Default	(omit — default)	(omit — default)
Destructive	.ebColorScheme(.destructive)	colors=…destructiveColors()
White	.ebColorScheme(.white)	colors=…whiteColors()
Subtle	.ebColorScheme(.subtle)	colors=…subtleColors()

Icon Placement component property (v4.0)

Figma	SwiftUI	Compose
None	(text only — default)	(text only — default)
Leading	leadingIcon: Image(…)	leadingIcon={ Icon(…) }
Trailing	trailingIcon: Image(…)	trailingIcon={ Icon(…) }
Icon Only	EBButton(icon:, accessibilityLabel:)	EBButton(contentDescription=…) { Icon(…) }

Variants Inventory (180 total)

3 Style × 5 Size × 3 State × 4 Icon Placement=180 variants. Appearance is a variable mode (Default/Destructive/White/Subtle) that further multiplies visual states × 4=720 resolved visual states.

Style	Sizes	States	Icon Placements	Count
Filled	Large, Medium, Small, Compact, XSmall	Default, Pressed, Disabled	None, Leading, Trailing, Icon Only	60
Outline	Large, Medium, Small, Compact, XSmall	Default, Pressed, Disabled	None, Leading, Trailing, Icon Only	60
Text	Large, Medium, Small, Compact, XSmall	Default, Pressed, Disabled	None, Leading, Trailing, Icon Only	60

View full Style × Size breakdown (15 rows)

Style	Size	Height	States × Icon Placements	Count
Filled	Large	50px	3 × 4	12
Filled	Medium	48px	3 × 4	12
Filled	Small	36px	3 × 4	12
Filled	Compact	28px	3 × 4	12
Filled	XSmall	24px	3 × 4	12
Outline	Large	50px	3 × 4	12
Outline	Medium	48px	3 × 4	12
Outline	Small	36px	3 × 4	12
Outline	Compact	28px	3 × 4	12
Outline	XSmall	24px	3 × 4	12
Text	Large	50px	3 × 4	12
Text	Medium	48px	3 × 4	12
Text	Small	36px	3 × 4	12
Text	Compact	28px	3 × 4	12
Text	XSmall	24px	3 × 4	12

4.1.0 — April 2026 Minor

Mode-driven tokens applied + structure flatten + height refinement · node 17104:184842

Mode-driven appearance tokens applied to all 180 variants — Filled fills bound to appearance/container/fill (and pressed/disabled), Outline borders bound to appearance/stroke/color, all Outline + Text labels bound to new appearance/label/on-surface/color. Switching the parent frame's Variable Mode now drives appearance across the entire variant set. Validates the Mode → Property → API translation pattern for upcoming Code Connect work. Applied

C3 Improved

New appearance/label/on-surface/color variable created — 3 variants (color, color-pressed, color-disabled) × 4 modes. Provides semantic separation: label/color=labels on filled backgrounds (white-on-fill), label/on-surface/color=labels on transparent/surface backgrounds (color-on-surface). Eliminates the binding ambiguity for Outline/Text styles. Added

C3 Improved

button-container wrapper layer removed — Visual properties (fill, radius, auto-layout, padding) lifted from inner button-container frame up to the variant component itself. Layer depth: 4 → 3. Native parity improved (the component IS the styled element, matching SwiftUI/Compose conventions). Inner container frame retained for icon-label gap grouping. Restructured

C1 Improved

Large height reduced 56 → 50px — Per design review approval. Matches the visual rhythm of other CTAs in the system. Padding adjusted to maintain proportions. Refined

C3 Refined

Text styles renamed — Primary/Label/Large (was Primary/Label/Light/Base), Primary/Label/Base, Primary/Label/Small, Primary/Label/Fine. Cleaner semantic naming, removes the redundant "Light" prefix. Renamed

C2 Improved

Figma component description added — Documents the Appearance Mode → SwiftUI/Compose API mapping directly in the Figma component description. Surfaces the Mode layer in dev handoff (Dev Mode panel). Will be superseded by Code Connect when C7 is implemented. Documented

C7 Partial

4.0.0 — April 2026 Major

Icon Placement restructure + Appearance Mode documentation · node 17104:184842

Icon Placement promoted to component property — Previously two boolean toggles (leadingIcon, trailingIcon) caused handoff ambiguity. Now a single 4-value enum: None / Leading / Trailing / Icon Only. Adds Icon Only as a new square-button variant. Total variants: 60 → 180 (3 Styles × 3 States × 5 Sizes × 4 Icon Placements). Restructured

C2 Improved

Appearance Mode documented in Figma component description — Appearance (Default/Destructive/White/Subtle) remains a Variable Mode for token reuse but is now explicitly documented in the Figma component description with SwiftUI/Compose API mapping. Addresses the Mode-invisibility handoff gap. Will be superseded by Code Connect when C7 is implemented. Documented

C7 Partial

State property reduced to 3 values — State now Default/Pressed/Disabled. Loading is handled as an interaction modifier in native code rather than a Figma variant. Simplified

C5 Refined

3.2.0 — March 2026 Minor

Changes Applied via Figma MCP · node 17104:184842

Compact size added — New Size=Compact (28px height) between Small and XSmall. 12 new variants. Total: 60 variants (3 Styles × 5 Sizes × 4 States). Added

C2 Improved

Height tokens bound — All sizes now use space tokens for height: Large=space/space-56, Medium=space/space-48, Small=space/space-36, Compact=space/space-28. XSmall height still derived from padding. Refined

C3 Improved

3.1.0 — March 2026 Minor

Loading State Added via Figma MCP · node 17104:184842

Loading state added as 4th state dimension — 12 new State=Loading variants (3 Styles × 4 Sizes). Dot indicators (● ● ●) replace label text. Uses disabled appearance colors. Tap is disabled during loading. Added

C5 Resolved

Variant count increased from 36 → 48 — 4 states (Default/Pressed/Disabled/Loading) × 4 sizes × 3 styles. 192 visual states across 4 appearance modes. Updated

+12 Variants

2.0.0 — March 2026 Major

Component Restructure via Figma MCP · node 17104:184842

isError replaced with Variant: Brand | Destructive — True orthogonal property applied to all 24 variants. Destructive Default (filled) variants added for all 3 states. All 30 existing variants renamed. Fixed

C2 Resolved

White and Subtle appearances added — 6 new Brand-only variants (3 States each). White for inverse/dark-surface contexts; Subtle for neutral-tinted surface contexts. Added

+6 Variants

Size dimension removed from variant matrix — Compact variants deleted. Size is now driven by the button/size variable collection with 4 modes: Large (52px), Medium (36px), Small (28px), XSmall (24px). Reduces variant count from 36 → 24 while expanding size coverage. Restructured

36 → 24 Variants

button/size variable collection created — 5 variables (height, font-size, padding-h, padding-v, icon-size) bound to all containers, labels, and icon slots across all variants. Fixed height binding prevents icon slot size from affecting button height. Added

C3 Enhanced

Icon slots upgraded to SLOT nodes with Boolean properties — leadingIcon and trailingIcon promoted from hidden frames to Figma SLOT nodes. Boolean component properties added for designer toggle control. Upgraded

C6 Enhanced

1.3.0 — March 2026 Re-assessment

Re-assessment · node 17104:184842

isError re-classified as C2 issue — isError is not a true orthogonal boolean. Only applies to Outlined and Text Link, not Default. Recommendation: fold into Appearance as Outlined Error / Text Link Error. Resolved in v2.0.0. Resolved in 2.0.0

C2 Re-opened

Focus ring removed from C5 scope — Component is mobile-only. Focus rings rendered natively by iOS (UIKit/SwiftUI) and Android (Material a11y). No Figma state required. Clarified

C5 Scope Revised

1.2.0 — March 2026 Minor

Changes Applied via Figma MCP · node 17104:184842

Icon slots added: leadingIcon + trailingIcon — Added to all 30 variants. Hidden by default. Upgraded to SLOT nodes with Boolean properties in v2.0.0. Fixed

C2 Resolved

1.1.0 — March 2026 Minor

Changes Applied via Figma MCP · node 17104:184842

Layer renamed: .base/button/small → container — Resolves C1. Fixed

C1 Resolved

1.0.0 — March 2026 Initial

Initial Assessment · node 17104:184842

Component assessed — 30 variants documented. Documented

Initial

Token audit complete — 24 color + 9 layout tokens confirmed. Verified

C3 Pass

Focus ring and loading state missing — Loading resolved in v3.1.0. Focus ring is N/A for mobile (rendered natively by iOS/Android). Resolved

C5 Pass

Code Connect mappings — No CLI mappings registered. Still Open

C7 Open

Checkbox Component link

A selection control for binary and partial choices. 33 variants across isSelected (true/false/indeterminate) × State (Default/Pressed/Focused/Disabled/Error) × Size (Small/Medium/Large). Code Connect registration pending.

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle size and state to see the checkbox update in real time.

Properties

isSelected

State

Size

DS Health

Reusable

Partial

All 5 interaction states and indeterminate defined across 3 sizes (C5 resolved). Checkbox is icon-only by design — CheckboxItem compound component provides label + description pairing.

Self-contained

Pass

Checkmark is a separable icon-check child layer (C6 resolved). All 5 interaction states and indeterminate defined across 3 sizes (C5 resolved). Carries its own visual states and token bindings.

Consistent

Pass

Token naming follows DS convention (main/checkbox/color/...). isSelected uses true/false/indeterminate. All property values follow boolean and enum standards (C2 resolved).

Composable

Partial

Nests in form layouts, list rows, and select-all patterns. Indeterminate state defined. CheckboxItem compound component wraps Checkbox + Label + Description for accessible form groups.

Behavior

State	iOS	Android	Figma Property	Notes
Unchecked	Yes	Yes	isSelected=false	Border-only container. 3 sizes.
Checked	Yes	Yes	isSelected=true	Blue fill + separable icon-check layer.
Indeterminate	Yes	Yes	isSelected=indeterminate	Blue fill + icon-indeterminate dash.
Disabled	Yes	Yes	State=Disabled	40% opacity. Checked: #9BC5FD fill.
Pressed	Yes	Yes	State=Pressed	Unchecked: #EBF2FF bg. Checked: #0F57C8.
Focused	Yes	Yes	State=Focused	Blue #1972F9 border stroke.
Error	Yes	Yes	State=Error	Red border / red #D81E1E fill.

Resolved Issues

isSelected=Yes/No renamed to isSelected=true/false in Figma — now maps correctly to Swift Bool and Kotlin BooleanC2 Fixed
Checkmark rebuilt as a separable icon-check child layer inside each checked container — engineers can now tint, swap, and reference it via Code Connect C6 Fixed
Added 27 new variants — State (Pressed/Focused/Disabled/Error) × isSelected (true/false) × Size, plus isSelected=indeterminate per size with icon-indeterminate dash layer. 6 → 33 total variants C5 Fixed

Open Issues

Code Connect CLI mappings not registered — all structural blockers resolved, registration can now proceed (C7)

CheckboxItem compound component created — Checkbox instance + Label (Proxima Soft Bold) + Description (BarkAda Medium). 4 variants: isSelected (true/false) × Size (Small 14px label / Medium 18px label). Node: 17734:161220Created

States

33 variants across 3 axes: State (Default/Pressed/Focused/Disabled/Error) × isSelected (true/false/indeterminate) × Size (Small/Medium/Large). All interaction states carry proper container fills, strokes, and separable icon layers.

Unchecked

DESDEV

Empty container with border stroke. Represents a deselected option.

Properties

isSelectedfalse

State

Size

Checked

DESDEV

Filled container with white checkmark. Represents a selected option. Checkmark is rendered via a separable icon-check child layer.

Properties

isSelectedtrue

State

Size

Colors by State

All interaction states now have defined colors. Token paths follow main/checkbox/color/{state}/{role} convention.

State	Role	Token	DEFAULT	PRESSED	DISABLED	ERROR
Unchecked	Border	unselected/border	#D7E0EF	#1972F9	#D7E0EF	#D81E1E
Unchecked	Container bg	unselected/bg	–	#EBF2FF	–	–
Checked	Container bg	selected/bg	#1972F9	#0F57C8	#9BC5FD	#D81E1E
Checked	Checkmark	selected/icon-check	#FFFFFF	#FFFFFF	#FFFFFF	#FFFFFF
Indeterminate	Container bg	indeterminate/bg	#1972F9	–	–	–
Indeterminate	Dash icon	indeterminate/icon	#FFFFFF	–	–	–
Focused	Border	focused/border	#1972F9 (all isSelected values)

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

// Or in Package.swift:
.package(
    url: "https://github.com/AY-Org/eb-ds-ios",
    from: "2.0.0"
)

Android — Gradle (Kotlin DSL)

// build.gradle.kts (app)
dependencies {
    implementation("com.eastblue.ds:checkbox:2.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.checkbox.*  // Compose

Package not yet published. These are the planned distribution paths. API shape is final — native implementation is pending.

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
isSelected	isOn: Binding<Bool>	checked: Boolean	true/false
isSelected=indeterminate	toggleIndeterminate	TriStateCheckbox	Partial selection
Size	.controlSize()	size=EBCheckboxSize.*	Small 16px, Medium 20px, Large 24px
State=Disabled	.disabled(true)	enabled=false	40% opacity
State=Pressed	—	interactionSource	Touch feedback
State=Focused	.focused()	interactionSource	Keyboard/switch nav
State=Error	.ebError(true)	isError=true	Form validation

SwiftUI

ios/Components/Checkbox/EBCheckbox.swift

Jetpack Compose

android/components/checkbox/EBCheckbox.kt

Usage Snippets Planned API

Unchecked

// Unchecked (default state)
EBCheckbox(isOn: $isSelected)
    .controlSize(.regular)

// Small size
EBCheckbox(isOn: $isSelected)
    .controlSize(.mini)

// Unchecked (default state)
EBCheckbox(
    checked = false,
    onCheckedChange = { isSelected = it },
    size = EBCheckboxSize.Medium
)

// Small size
EBCheckbox(
    checked = false,
    onCheckedChange = { isSelected = it },
    size = EBCheckboxSize.Small
)

Checked

// Checked (selected state)
EBCheckbox(isOn: .constant(true))
    .controlSize(.regular)

// Bound to state
@State private var isChecked = true
EBCheckbox(isOn: $isChecked)
    .controlSize(.large)

// Checked (selected state)
EBCheckbox(
    checked = true,
    onCheckedChange = { isSelected = it },
    size = EBCheckboxSize.Medium
)

// Bound to state
var isChecked by remember { mutableStateOf(true) }
EBCheckbox(
    checked = isChecked,
    onCheckedChange = { isChecked = it }
)

Indeterminate

// Indeterminate (partial selection)
EBCheckbox(isOn: $isSelected)
    .controlSize(.regular)
    .toggleIndeterminate(true)

// Indeterminate (partial selection)
TriStateCheckbox(
    state = ToggleableState.Indeterminate,
    onClick = { /* cycle state */ },
    modifier = Modifier.size(EBCheckboxSize.Medium)
)

Disabled

// Disabled unchecked
EBCheckbox(isOn: $isSelected)
    .controlSize(.regular)
    .disabled(true)

// Disabled checked
EBCheckbox(isOn: .constant(true))
    .controlSize(.regular)
    .disabled(true)

// Disabled unchecked
EBCheckbox(
    checked = false,
    onCheckedChange = {},
    enabled = false,
    size = EBCheckboxSize.Medium
)

// Disabled checked
EBCheckbox(
    checked = true,
    onCheckedChange = {},
    enabled = false,
    size = EBCheckboxSize.Medium
)

Error

// Error state (form validation)
EBCheckbox(isOn: $isSelected)
    .controlSize(.regular)
    .ebError(true)

// Error state (form validation)
EBCheckbox(
    checked = false,
    onCheckedChange = { isSelected = it },
    isError = true,
    size = EBCheckboxSize.Medium
)

Requirement	iOS	Android
Minimum touch target	44 x 44 pt	48 x 48 dp
Accessibility label	`.accessibilityLabel("Accept terms")`	`semantics { contentDescription="Accept terms" }`
Checked state announcement	VoiceOver reads "checked" / "unchecked" automatically via Toggle	TalkBack reads state automatically via Checkbox semantics
Indeterminate	`toggleIndeterminate` reads "mixed"	`TriStateCheckbox` reads "partially checked"

Component is icon-only. Wrapping containers must provide an accessible label. Use padding to meet minimum touch target sizes for the smaller variants.

Usage Guidelines

Do

Pair with a visible label adjacent to the checkbox. Checkboxes must always have associated text.

Don't

Use for a single binary toggle — use Switch/Toggle instead. Checkboxes are for multi-select scenarios.

Do

Use for multi-select scenarios — forms, filter lists, settings, and select-all patterns.

Don't

Use a standalone Checkbox without an accessible label. Pair with CheckboxItem or an adjacent text label for form use.

Do

Expand touch area via padding when using Small (16px) size — minimum touch target is 44pt / 48dp.

Don't

Omit an accessible label. Use .accessibilityLabel / contentDescription when no visible label is present.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Root frame named `container`. Simple, semantic hierarchy. No generic layer names.
C2	Variant & Property Naming	Ready	`isSelected` now uses `true/false` — corrected in Figma. Maps directly to Swift `Bool` / Kotlin `Boolean`. `indeterminate` property is a C5 concern (missing state variant).
C3	Token Coverage	Ready	All states have defined color values. Default, Pressed, Disabled, Error, Focused, and Indeterminate containers use distinct fills/strokes. Separable `icon-check` and `icon-indeterminate` layers present.
C4	Native Mappability	Ready	Maps to `Toggle(.checkbox)` / `Checkbox`. Indeterminate maps to `TriStateCheckbox`. Label pairing via `CheckboxItem` compound component.
C5	Interaction State Coverage	Ready	All 5 interaction states defined (Default, Pressed, Focused, Disabled, Error) × isSelected (true/false) × 3 sizes. Indeterminate added as `isSelected=indeterminate` with `icon-indeterminate` dash layer. 33 total variants.
C6	Asset & Icon Quality	Ready	Checkmark rebuilt as a separable `icon-check` child vector layer inside each checked container. Can be tinted via `selected/icon-check` token and swapped natively.
C7	Code Connect Linkability	Needs Refinement	All structural blockers resolved (C2, C5, C6). Ready for CLI mapping registration. No mappings registered yet.

Code Connect

Aspect	Status	Notes
Property naming	Ready	`isSelected=true/false` — maps directly to Swift `Bool` and Kotlin `Boolean`
Icon/asset quality	Ready	`icon-check` is now a named, separable child layer — can be mapped to a native icon slot via Code Connect
State coverage	Ready	All interaction states defined — Default, Pressed, Focused, Disabled, Error, plus Indeterminate
Usage descriptions	Ready	All 33 variants have usage descriptions attached in Figma
Native component file	Pending	EBCheckbox.swift / EBCheckbox.kt not yet created

Variants Inventory (33 total)

5 State × 3 isSelected × 3 Size=45 theoretical. isSelected=indeterminate only ships State=Default, so actual count is (5 × 2 × 3) + (1 × 1 × 3)=33 variants.

isSelected	States	Sizes	Count
false	Default, Pressed, Focused, Disabled, Error	Small, Medium, Large	15
true	Default, Pressed, Focused, Disabled, Error	Small, Medium, Large	15
indeterminate	Default only	Small, Medium, Large	3

View full State × isSelected × Size breakdown (33 rows)

isSelected	State	Size	Node ID
false	Default	Small	17143:2465
false	Pressed	Small	17733:968
false	Focused	Small	17733:971
false	Disabled	Small	17733:974
false	Error	Small	17733:977
true	Default	Small	17143:2468
true	Pressed	Small	17733:980
true	Focused	Small	17733:984
true	Disabled	Small	17733:988
true	Error	Small	17733:992
false	Default	Medium	17143:2471
false	Pressed	Medium	17733:996
false	Focused	Medium	17733:998
false	Disabled	Medium	17733:1000
false	Error	Medium	17733:1002
true	Default	Medium	17143:2473
true	Pressed	Medium	17733:1004
true	Focused	Medium	17733:1008
true	Disabled	Medium	17733:1012
true	Error	Medium	17733:1016
false	Default	Large	17143:2476
false	Pressed	Large	17733:1020
false	Focused	Large	17733:1022
false	Disabled	Large	17733:1024
false	Error	Large	17733:1026
true	Default	Large	17143:2478
true	Pressed	Large	17733:1028
true	Focused	Large	17733:1032
true	Disabled	Large	17733:1036
true	Error	Large	17733:1040
indeterminate	Default	Small	17733:1044
indeterminate	Default	Medium	17733:1048
indeterminate	Default	Large	17733:1052

1.5.0 — March 2026 Minor

Compound Component + Cleanup · node 17734:161220

CheckboxItem compound component created — 4 variants: isSelected (true/false) × Size (Small/Medium). Each contains a real Checkbox instance + Label (Proxima Soft Bold, 14px/18px) + Description (BarkAda Medium, 12px). Wraps atomic Checkbox with label pairing for accessible form use. Created

New Component

Variant property order reordered — Naming changed from isSelected=X, Size=Y, State=Z to State=X, isSelected=Y, Size=Z. State is now the first property axis in the component set. Section renamed from "Claude Testing" to "Checkbox". Updated

Cleanup

1.4.0 — March 2026 Minor

C5 Fix · node 17143:2464

All interaction states added — Added 27 new variants covering State (Pressed/Focused/Disabled/Error) × isSelected (true/false) × Size (Small/Medium/Large). Variants 6 → 33. Colors: Pressed uses light blue fill + blue border (unchecked) / #0F57C8 (checked); Focused uses blue border; Disabled uses 40% opacity; Error uses red border / #D81E1E fill. Fixed

C5 Resolved

Indeterminate state added — Added isSelected=indeterminate variants for Small, Medium, and Large. Each contains a blue container frame with a named icon-indeterminate horizontal dash child layer. Maps to ToggleableState.Indeterminate (Android) and toggleIndeterminate (iOS). Fixed

C5 Indeterminate

1.3.0 — March 2026 Minor

C6 Fix · node 17143:2464

Checkmark rebuilt as separable vector layer — Deleted the flattened boolean-op containers from all 3 isSelected=true variants. Created clean blue container frames (4px radius) with a named icon-check child vector inside each. Engineers can now tint via selected/icon-check token and map to a native icon slot. Nodes: 17721:962 (Small), 17721:963 (Medium), 17721:964 (Large). Fixed

C6 Resolved

1.2.0 — March 2026 Minor

C2 Fix · node 17143:2464

Boolean property renamed in Figma — All 6 variants renamed from isSelected=Yes/No to isSelected=true/false. Now maps directly to Swift Bool and Kotlin Boolean for Code Connect. C2 criterion resolved. Fixed

C2 Resolved

1.1.0 — March 2026 Minor

Assessment Rebuild · node 17143:2464

Full 4-tab assessment built — Overview, Style, Code, and Changelog tabs. Interactive live preview with size and state controls. Spec cards for Unchecked and Checked appearances. Full criteria scorecard and Code Connect readiness table. Updated

Documentation

Property name corrected — Existing assessment incorrectly referenced isChecked. Figma metadata confirms the property is isSelected. All documentation updated. Fixed

C2 Note

1.0.0 — March 2026 Initial

Initial Assessment · node 17143:2464

Component assessed — 6 variants documented across isSelected (Yes/No) x Size (Small 16px / Medium 20px / Large 24px). Token audit found 7 variables defined. Documented

Initial

Flattened checkmark icon — Checked containers had no child layers. The white checkmark was a boolean operation baked into the container frame. Cannot be extracted, tinted, or swapped as a component instance. Hard C6 blocker. Fixed in v1.3.0

C6 Resolved

Missing interaction states — Only checked/unchecked defined. No disabled, pressed, focused, indeterminate, or error state variants. Checkboxes require all of these for production form use. Fixed in v1.4.0

C5 Resolved

Boolean property uses Yes/No — isSelected=Yes/No instead of true/false. Incompatible with Swift Bool and Kotlin Boolean for Code Connect mapping. Fixed in v1.2.0

C2 Resolved

Code Connect mappings — Usage descriptions attached per variant. Was blocked by C2 and C6 (both resolved). Pending C5 (missing states) before complete CLI mapping. No CLI mappings registered yet. Open

C7 Open

Dropdown FixNeeds RefinementComponent link

A generic dropdown component with a select-style trigger and an overlay item list. 8 variants across variant (Text/Error/Amount/Mobile) × type (Collapsed/Expanded). Text and Error variants use a standard label + select field trigger. Amount adds a peso sign prefix. Mobile bundles a country code selector with a phone number input field. Optional subtext slot for helper/error messages.

Fix required before handoff

Missing disabled and pressed states (C5). DropdownItem selected uses yes/no instead of true/false (C2). Amount variant Peso Sign uses BOOLEAN_OPERATION (C6).

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle variant and type to see the dropdown update in real time.

Properties

variant

type

DS Health

Reusable

Partial

Text and Error variants are generic dropdown patterns usable across many flows. Amount (peso-specific) and Mobile (phone input) variants are product-specific to GCash and limit cross-context reuse.

Self-contained

Pass

Bundles trigger field, chevron affordance, dropdown list overlay with shadow, and subtext slot. All visual states (collapsed/expanded/error) are self-contained with proper token bindings.

Consistent

Partial

DropdownItem selected uses yes/no string instead of true/false boolean (C2). Property type is a generic name — could conflict with platform keywords. Layer dropdowncontainer inconsistent with kebab-case convention.

Composable

Partial

Text/Error/Amount variants compose well with form layouts. Mobile variant bundles too many concerns (dropdown + phone input) — should be separated into discrete components. Trigger field is not a swappable slot.

Behavior

State	iOS	Android	Figma Property	Notes
Collapsed (Default)	Yes	Yes	type=Collapsed	Gray #D7E0EF border, white bg. Chevron down.
Expanded (Active)	Yes	Yes	type=Expanded	Blue #005CE5 border, chevron up. Dropdown list overlay with shadow.
Error	Yes	Yes	variant=Error	Red border — weak #F4C7C9 (collapsed), strong #D61B2C (expanded).
Disabled	No	No	—	Not defined. Required for form accessibility.
Pressed	No	No	—	Not defined. Touch feedback expected on mobile.

Open Issues

DropdownItem selected property uses yes/no string — should be true/false for Swift Bool / Kotlin Boolean mapping C2
No disabled state — form dropdowns must support non-interactive state for accessibility and conditional form flows C5
No pressed state — touch feedback expected on mobile platforms (iOS highlight, Android ripple) C5
Amount variant Peso Sign uses shape_full BOOLEAN_OPERATION — not a clean vector path C6
Code Connect CLI mappings not registered C7

Variants

8 variants across 2 axes: variant (Text/Error/Amount/Mobile) × type (Collapsed/Expanded). Text and Error share the same trigger structure. Amount adds a peso sign. Mobile adds a label row with info icon, plus a phone input field.

Text

Default text dropdown. Label header, select trigger with placeholder text and chevron, optional subtext. Used for general-purpose list selection.

Properties

variantText

type

Error

Error state dropdown with red border. Collapsed uses weak border (#F4C7C9), expanded uses strong border (#D61B2C). Subtext turns red for error messaging.

Properties

variantError

type

Amount

Amount selection with peso sign prefix. Same trigger structure as Text but with a currency indicator for monetary value selection.

Properties

variantAmount

type

Mobile

Country code dropdown with phone number input. Bundles a label row (with info icon), a select field for country code, and a Labeled Field for phone number entry. Product-specific to GCash mobile number flows.

Properties

variantMobile

type

Colors by State

Trigger field and dropdown list colors. Border color is the primary state indicator. Error variant uses distinct border tokens.

Role	Token	DEFAULT	ACTIVE	ERROR (collapsed)	ERROR (expanded)
Trigger border	selected-field/color/{state}/border	#D7E0EF	#005CE5	#F4C7C9	#D61B2C
Trigger bg	selected-field/color/{state}/bg	#FFFFFF	#FFFFFF	#FFFFFF	#FFFFFF
Placeholder	selected-field/color/{state}/placeholder	#90A8D0	#90A8D0	#90A8D0	#90A8D0
Chevron icon	selected-field/color/{state}/icon	#005CE5	#005CE5	#005CE5	#005CE5
Peso sign (Amount)	selected-field/color/{state}/icon-currency	#183462	#183462	–	–
Header label	formgroup-header/color/label	#0A2757	#0A2757	#0A2757	#0A2757
Item label	dropdown-item/color/default/label	–	#0A2757	–	#0A2757
Item border	dropdown-item/color/default/border	–	#E5EBF4	–	#E5EBF4
Dropdown bg	bg/color-bg-main	–	#FFFFFF	–	#FFFFFF
Subtext	text/color-text-weak	#445C85	#445C85	–	–
Error subtext	border/color-border-destructive	–	–	#D61B2C	#D61B2C

Layout

Property	Value
Trigger height	46px
Corner radius	6px (radius-2)
Trigger padding	6px top, 8px bottom, 12px horizontal
Chevron size	32 × 32
Peso sign size (Amount)	15 × 15
Item padding	16px vertical, 12px left, 16px right
Dropdown corner radius	6px
Dropdown shadow	0 6px 12px rgba(2,14,34,0.16)
Header padding bottom	8px

Typography

Layer	Text Style	Font	Size	Tracking	Line-height
Header label	Primary/Label/Light/Small	Proxima Soft Semibold	14px	0.25px	14px
Trigger placeholder	Primary/Label/Light/Small	Proxima Soft Semibold	14px	0.25px	14px
Dropdown item	Primary/Label/Light/Large	Proxima Soft Semibold	18px	0.25px	18px
Subtext	—	BarkAda Semibold	12px	0px	18px

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:dropdown:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.dropdown.*  // Compose

Package not yet published. These are the planned distribution paths.

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
variant=Text	EBDropdown(label:items:)	EBDropdown(label, items)	Default text selection
variant=Error	.ebError(true)	isError=true	Validation failed state
variant=Amount	.ebStyle(.amount)	style=EBDropdownStyle.Amount	Shows peso sign prefix
variant=Mobile	.ebStyle(.mobile)	style=EBDropdownStyle.Mobile	Country code + phone input
type=Collapsed	—	—	Default closed state (managed internally)
type=Expanded	isPresented: Binding<Bool>	expanded: Boolean	Dropdown list visible
subtext (boolean)	helperText: String?	helperText: String?	Optional helper/error text

SwiftUI

ios/Components/Dropdown/EBDropdown.swift

Jetpack Compose

android/components/dropdown/EBDropdown.kt

Usage Snippets Planned API

Text (Default)

EBDropdown("Category", selection: $category) {
    ForEach(categories) { item in
        Text(item.name)
    }
}

EBDropdown(
    label = "Category",
    items = categories,
    selectedItem = selected,
    onItemSelected = { selected = it }
)

Error

EBDropdown("Category", selection: $category) {
    ForEach(categories) { item in
        Text(item.name)
    }
}
.ebError(true)
.ebHelperText("Please select a category")

EBDropdown(
    label = "Category",
    items = categories,
    selectedItem = selected,
    onItemSelected = { selected = it },
    isError = true,
    helperText = "Please select a category"
)

Amount

EBDropdown("Amount", selection: $amount) {
    ForEach(amounts) { item in
        Text(item.formatted)
    }
}
.ebStyle(.amount)

EBDropdown(
    label = "Amount",
    items = amounts,
    selectedItem = selected,
    onItemSelected = { selected = it },
    style = EBDropdownStyle.Amount
)

Requirement	iOS	Android
Minimum touch target	44 × 44 pt	48 × 48 dp
Accessibility label	`.accessibilityLabel("Select category")`	`contentDescription`
Role	`.accessibilityAddTraits(.isButton)`	`semantics { role=Role.DropdownList }`
Expanded state	VoiceOver: "collapsed" / "expanded"	TalkBack: announce expansion state
Item selection	`.accessibilityValue(selectedItem)`	`semantics { stateDescription }`

Usage Guidelines

Do

Use Dropdown for selecting from a predefined list of options. Label the trigger clearly so users know what they're selecting.

Don't

Use Dropdown for free-text entry — use Input Field instead. Dropdown is for constrained selection only.

Do

Show error state with helper text below the field explaining the validation issue.

Don't

Use the Mobile variant for generic dropdown needs — it bundles phone-specific UI that adds complexity without value.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Semantic names: `label`, `container`, `text-container`, `peso-sign`, `Chevron Up/Down`. Minor: `dropdowncontainer` missing separator.
C2	Variant & Property Naming	Partial	DropdownItem `selected` uses `yes/no` instead of `true/false`. `type` is a generic property name.
C3	Token Coverage	Ready	All colors bound to design tokens. Space, radius, typography, and elevation tokens all present.
C4	Native Mappability	Partial	Text/Error/Amount map to `Menu` (iOS) / `ExposedDropdownMenuBox` (Android). Mobile variant needs custom composition.
C5	Interaction State Coverage	Needs Fix	Missing disabled and pressed states. Only Collapsed, Expanded, and Error defined.
C6	Asset & Icon Quality	Partial	Chevrons are vector instances. Amount variant Peso Sign uses BOOLEAN_OPERATION (`shape_full`).
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Code Connect

Aspect	Status	Notes
Property naming	Partial	DropdownItem `selected` needs boolean rename; `type` is generic
Asset quality	Partial	Peso Sign BOOLEAN_OPERATION in Amount variant
State coverage	Blocked	Missing disabled/pressed states blocks complete mapping
Native component file	Pending	EBDropdown.swift / EBDropdown.kt not yet created

Variants Inventory (8 total)

4 variant values × 2 type values (Collapsed/Expanded). subtext boolean toggleable on all variants.

variant	type	Node ID
Text	Collapsed	23:199481
Text	Expanded	23:199486
Error	Collapsed	883:30631
Error	Expanded	883:30686
Amount	Collapsed	23:199491
Amount	Expanded	23:199496
Mobile	Collapsed	23:199501
Mobile	Expanded	6388:4818

1.0.0 — April 2026 Initial

Initial Assessment · node 23:199480

Component assessed — 8 variants documented across variant (Text/Error/Amount/Mobile) × type (Collapsed/Expanded). Generic dropdown with trigger field, chevron affordance, and overlay item list. Documented

Initial

DropdownItem selected uses yes/no — selected=yes/no instead of true/false. Incompatible with Swift Bool and Kotlin Boolean for Code Connect mapping. Open

C2 Open

Missing disabled and pressed states — Only Collapsed, Expanded, and Error states defined. No disabled state for non-interactive forms, no pressed state for touch feedback. Open

C5 Open

Amount variant Peso Sign uses BOOLEAN_OPERATION — shape_full is a BOOLEAN_OPERATION, not a clean vector path. May render inconsistently on native platforms. Open

C6 Open

Code Connect mappings — No CLI mappings registered yet. Open

C7 Open

Input Field FixNeeds RefinementComponent link

A basic text input field with border stroke and placeholder text. 8 variants across State (Default/Active/Error/Disabled) × isFilled (Yes/No). Part of the Form Elements group — serves as the base primitive for Labeled Field, Select Field, and Recipient Field.

Fix required before handoff

isFilled uses Yes/No instead of true/false (C2). Property naming blocks direct Swift Bool / Kotlin Boolean mapping.

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle state and fill to see the input field update in real time.

Properties

State

isFilled

DS Health

Reusable

Partial

Works across any text input context. Single-line only — no multi-line or textarea variant. No size variants (fixed 46px height).

Self-contained

Pass

Carries its own border, fill, and text styles per state. All 4 interaction states defined. Disabled state has distinct background.

Consistent

Pass

C2 resolved — isFilled now uses true/false. C1 resolved — text layer renamed from #text-label to #label, consistent with sibling fields.

Composable

Pass

Serves as the base primitive for Labeled Field, Select Field, and Recipient Field. Nests cleanly in form layouts.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	State=Default	Gray #D7E0EF border, white bg.
Active (Focused)	Yes	Yes	State=Active	Blue #005CE5 border.
Error	Yes	Yes	State=Error	Red #D61B2C border.
Disabled	Yes	Yes	State=Disabled	#EEF2F9 bg, border hidden.

Resolved Issues

isFilled property renamed from Yes/No to true/false — now maps directly to Swift Bool / Kotlin BooleanC2 Fixed
Text layer renamed from #text-label to #label — now consistent with sibling fields C1 Fixed

Open Issues

Code Connect CLI mappings not registered C7

States

8 variants across 2 axes: State (Default/Active/Error/Disabled) × isFilled (Yes/No). All share the same 366×46px container with 6px corner radius.

Default

Idle state with gray border. Text color depends on whether the field has a value.

Properties

StateDefault

isFilled

Active (Focused)

Focused state with blue border indicating active input.

Properties

StateActive

isFilled

Error

Validation error state with red border.

Properties

StateError

isFilled

Disabled

Non-interactive state with gray background and hidden border.

Properties

StateDisabled

isFilled

Colors by State

All states share the same container structure. Border color is the primary state indicator.

Role	Token	DEFAULT	ACTIVE	ERROR	DISABLED
Border	field/border	#D7E0EF	#005CE5	#D61B2C	hidden
Background	field/bg	#FFFFFF	#FFFFFF	#FFFFFF	#EEF2F9
Text (filled)	field/text/filled	#0A2757	#0A2757	#0A2757	#90A8D0
Text (empty)	field/text/placeholder	#90A8D0	#90A8D0	#90A8D0	#C2CFE5

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:form-elements:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.form.*  // Compose

Package not yet published. These are the planned distribution paths.

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
isFilled (Yes/No)	text: Binding<String>	value: String	Derived from text content
State=Default	—	—	Default idle state
State=Active	.focused()	interactionSource	Keyboard active
State=Error	.ebError(true)	isError=true	Validation failed
State=Disabled	.disabled(true)	enabled=false	Non-interactive

SwiftUI

ios/Components/FormElements/EBInputField.swift

Jetpack Compose

android/components/form/EBInputField.kt

Usage Snippets Planned API

Default

EBInputField("Placeholder", text: $value)

EBInputField(
    value = text,
    onValueChange = { text = it },
    placeholder = "Placeholder"
)

Error

EBInputField("Placeholder", text: $value)
    .ebError(true)

EBInputField(
    value = text,
    onValueChange = { text = it },
    placeholder = "Placeholder",
    isError = true
)

Disabled

EBInputField("Placeholder", text: $value)
    .disabled(true)

EBInputField(
    value = text,
    onValueChange = { text = it },
    placeholder = "Placeholder",
    enabled = false
)

Requirement	iOS	Android
Minimum touch target	44 x 44 pt	48 x 48 dp
Accessibility label	`.accessibilityLabel("Input")`	`contentDescription`
Error announcement	VoiceOver reads error via `.accessibilityValue`	TalkBack reads error via `semantics { error() }`

Usage Guidelines

Do

Pair with a visible label above or inside the field. Use placeholder text to hint at expected input format.

Don't

Use placeholder text as the only label — it disappears on focus and fails accessibility.

Do

Show error state with a helper text message below the field explaining what needs to be corrected.

Don't

Use Input Field for selection — use Select Field instead. Input Field is for free-text entry only.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Layer renamed to `#label`, now consistent with sibling fields.
C2	Variant & Property Naming	Ready	`isFilled` now uses `true/false`. Boolean naming resolved.
C3	Token Coverage	Partial	Colors appear correct but token binding not verified.
C4	Native Mappability	Ready	Maps to `TextField` (SwiftUI) / `OutlinedTextField` (Compose).
C5	Interaction State Coverage	Ready	All 4 states defined: Default, Active, Error, Disabled.
C6	Asset & Icon Quality	Ready	No icons in base Input Field — text only.
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Code Connect

Aspect	Status	Notes
Property naming	Ready	`isFilled` uses `true/false` — maps directly to native booleans
State coverage	Ready	All 4 states defined
Native component file	Pending	EBInputField.swift / EBInputField.kt not yet created

Variants Inventory (8 total)

4 State values × 2 isFilled values.

State	isFilled	Node ID
Default	true	17758:3688
Default	false	17758:3691
Active	true	17758:3694
Active	false	17758:3697
Error	true	17758:3700
Error	false	17758:3703
Disabled	true	17758:3706
Disabled	false	17758:3709

1.1.0 — March 2026 Minor

C1 + C2 Fixes · Layer naming and boolean naming resolved

isFilled property renamed — isFilled=Yes/No updated to isFilled=true/false in Figma. Now maps directly to Swift Bool and Kotlin Boolean for Code Connect. Fixed

C2 Resolved

Text layer renamed — #text-label renamed to #label in Figma. Now consistent with sibling fields (Labeled Field, Select Field, Recipient Field). Fixed

C1 Resolved

1.0.0 — March 2026 Initial

Initial Assessment · node 17758:3687

Component assessed — 8 variants documented across State (Default/Active/Error/Disabled) × isFilled (Yes/No). Part of Form Elements group. Documented

Initial

Boolean property uses Yes/No — isFilled=Yes/No instead of true/false. Incompatible with Swift Bool and Kotlin Boolean for Code Connect mapping. Open

C2 Open

Code Connect mappings — No CLI mappings registered yet. Blocked by C2 (property naming). Open

C7 Open

Labeled Field FixNeeds RefinementComponent link

An enhanced form field with leading icon, label + value text container, an XSmall action button, and trailing icon. 8 variants across State (Default/Active/Error/Disabled) × isFilled (true/false). Part of the Form Elements group — extends the base Input Field pattern with icon slots and an embedded action button.

Fix required before handoff

Trailing icon uses rectangle placeholder instead of swappable icon instance (C6). Code Connect mappings not yet registered (C7).

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle state and fill to see the labeled field update in real time.

Properties

State

isFilled

DS Health

Reusable

Partial

Works across form contexts requiring labeled inputs with icons. Single-line only — no multi-line variant. Fixed 46px height with no size options.

Self-contained

Pass

Carries its own border, fill, icon slots, and text styles per state. All 4 interaction states defined. Disabled state has distinct background and hidden border.

Consistent

Partial

Boolean naming and casing fixed (C2 resolved): isFilled now uses true/false and property renamed to State. Action button layer renamed to action-button (C1 resolved).

Composable

Partial

Nests in form layouts. However, trailing-icon uses a rectangle placeholder instead of a swappable icon instance (C6), limiting icon customization at the consumer level.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	State=Default	Gray #D7E0EF border, white bg.
Active (Focused)	Yes	Yes	State=Active	Blue #005CE5 border.
Error	Yes	Yes	State=Error	Red #D61B2C border.
Disabled	Yes	Yes	State=Disabled	#EEF2F9 bg, border hidden.

Resolved Issues

isFilled renamed from Yes/No to true/false — now maps directly to Swift Bool / Kotlin BooleanC2 Fixed
Property state renamed to State (capitalized) — consistent with sibling Form Elements fields C2 Fixed
Button - XSmall layer renamed to action-button — now a semantic slot name for flexible consumer customization C1 Fixed
Trailing icon uses shared Placeholder component instance — swappable by design. Internal RECTANGLE is the default visual, replaced by designers when consuming the component C6 Closed

Open Issues

Code Connect CLI mappings not registered C7

States

8 variants across 2 axes: State (Default/Active/Error/Disabled) × isFilled (true/false). All share the same 46px height container with 6px corner radius. Each variant includes leading icon, text container (label + value), XSmall action button, and trailing icon.

Default

Idle state with gray border. Leading/trailing icon placeholders, label + value text container, and XSmall action button.

Properties

StateDefault

isFilled

Active (Focused)

Focused state with blue border indicating active input.

Properties

StateActive

isFilled

Error

Validation error state with red border.

Properties

StateError

isFilled

Disabled

Non-interactive state with gray background and hidden border.

Properties

StateDisabled

isFilled

Colors by State

All states share the same container structure. Border color is the primary state indicator. Text colors depend on isFilled (true/false).

Role	Token	DEFAULT	ACTIVE	ERROR	DISABLED
Border	field/border	#D7E0EF	#005CE5	#D61B2C	hidden
Background	field/bg	#FFFFFF	#FFFFFF	#FFFFFF	#EEF2F9
Label (filled)	field/text/label	#0A2757	#0A2757	#0A2757	#90A8D0
Value (filled)	field/text/value	#0A2757	#0A2757	#0A2757	#C2CFE5
Value (empty)	field/text/placeholder	#90A8D0	#90A8D0	#90A8D0	#C2CFE5

Layout

Height	46px
Corner radius	6px
Leading icon	24 × 24
Trailing icon	24 × 24
Action button	60 × 24 (radius 99)

Typography

Font	Proxima Soft
Weight	Semibold (600)
Size	14px
Letter spacing	0.25

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:form-elements:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.form.*  // Compose

Package not yet published. These are the planned distribution paths.

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
isFilled (true/false)	text: Binding<String>	value: String	Derived from text content
State=Default	—	—	Default idle state
State=Active	.focused()	interactionSource	Keyboard active
State=Error	.ebError(true)	isError=true	Validation failed
State=Disabled	.disabled(true)	enabled=false	Non-interactive
#label (TEXT)	label: String	label: String	Field label text
#value (TEXT)	text: Binding<String>	value: String	Field value text
leading-icon	leadingIcon: Image?	leadingIcon: @Composable?	24×24 icon slot
trailing-icon	trailingIcon: Image?	trailingIcon: @Composable?	24×24 icon slot (C6: rectangle placeholder)
action-button	action: EBFieldAction?	action: @Composable?	Semantic slot name (C1 resolved)

SwiftUI

ios/Components/FormElements/EBLabeledField.swift

Jetpack Compose

android/components/form/EBLabeledField.kt

Usage Snippets Planned API

Default

EBLabeledField("Label", text: $value)
    .leadingIcon(Image("icon-placeholder"))
    .trailingIcon(Image("chevron-right"))

EBLabeledField(
    value = text,
    onValueChange = { text = it },
    label = "Label",
    leadingIcon = { Icon(Icons.Default.Placeholder, null) },
    trailingIcon = { Icon(Icons.Default.ChevronRight, null) }
)

Error

EBLabeledField("Label", text: $value)
    .leadingIcon(Image("icon-placeholder"))
    .ebError(true)

EBLabeledField(
    value = text,
    onValueChange = { text = it },
    label = "Label",
    leadingIcon = { Icon(Icons.Default.Placeholder, null) },
    isError = true
)

Disabled

EBLabeledField("Label", text: $value)
    .leadingIcon(Image("icon-placeholder"))
    .disabled(true)

EBLabeledField(
    value = text,
    onValueChange = { text = it },
    label = "Label",
    leadingIcon = { Icon(Icons.Default.Placeholder, null) },
    enabled = false
)

Requirement	iOS	Android
Minimum touch target	44 x 44 pt	48 x 48 dp
Accessibility label	`.accessibilityLabel("Label")`	`contentDescription`
Error announcement	VoiceOver reads error via `.accessibilityValue`	TalkBack reads error via `semantics { error() }`
Action button label	`.accessibilityLabel("Action")` on button	`contentDescription` on button

Usage Guidelines

Do

Use Labeled Field when the input needs a persistent label above the value, a leading icon for context, and an optional action button.

Don't

Use Labeled Field for simple text entry — use Input Field instead. Labeled Field is for complex form rows with icon context.

Do

Provide meaningful icons in the leading and trailing slots — they help users identify the field purpose at a glance.

Don't

Leave the icon placeholders as-is in production — always swap in a contextual icon or hide the slot.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Layer renamed to `action-button`, now a semantic slot name.
C2	Variant & Property Naming	Ready	`isFilled` uses `true/false`. Property renamed to `State` (capitalized). Both fixes confirmed in Figma.
C3	Token Coverage	Partial	Colors appear correct but token binding not verified.
C4	Native Mappability	Ready	Maps to custom `EBLabeledField` on both platforms.
C5	Interaction State Coverage	Ready	All 4 states defined: Default, Active, Error, Disabled.
C6	Asset & Icon Quality	Partial	`trailing-icon` uses `icon-placeholder` RECTANGLE — not a swappable icon instance.
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Code Connect

Aspect	Status	Notes
Property naming	Ready	`isFilled=true/false` and `State` (capitalized) — C2 fixed in Figma, ready for mapping
State coverage	Ready	All 4 states defined
Icon slots	Partial	`leading-icon` uses Placeholder instance (OK). `trailing-icon` uses RECTANGLE (blocked).
Action slot	Ready	Renamed to `action-button` — semantic slot name, ready for Code Connect mapping
Native component file	Pending	EBLabeledField.swift / EBLabeledField.kt not yet created

Variants Inventory (8 total)

4 State values × 2 isFilled values.

State	isFilled	Node ID
Default	true	17758:3714
Default	false	17758:3723
Active	true	17758:3732
Active	false	17758:3741
Error	true	17758:3750
Error	false	17758:3759
Disabled	true	17758:3768
Disabled	false	17758:3777

1.2.0 — March 2026 Minor

C1 Figma Fix · node 17758:3713

Action button layer renamed — Button - XSmall renamed to action-button. Now uses a semantic slot name, enabling flexible consumer customization and clean Code Connect mapping. Fixed

C1 Fixed

1.1.0 — March 2026 Minor

C2 Figma Fix · node 17758:3713

Boolean property renamed — isFilled values changed from Yes/No to true/false. Now maps directly to Swift Bool and Kotlin Boolean for Code Connect. Fixed

C2 Fixed

Property casing corrected — state renamed to State (capitalized) to align with sibling Form Elements fields (Input Field, etc.). Fixed

C2 Fixed

1.0.0 — March 2026 Initial

Initial Assessment · node 17758:3713

Component assessed — 8 variants documented across State (Default/Active/Error/Disabled) × isFilled (true/false). Part of Form Elements group. Enhanced input with leading icon, label/value text, action button, and trailing icon. Documented

Initial

Boolean property uses Yes/No — isFilled=Yes/No instead of true/false. Incompatible with Swift Bool and Kotlin Boolean for Code Connect mapping. Open

C2 Open

Lowercase property name — state uses lowercase, inconsistent with other Form Elements using State (capitalized). Open

C2 Open

Hardcoded button instance — Button - XSmall is not a named action slot, limiting consumer customization. Open

C1 Open

Trailing icon uses RECTANGLE — icon-placeholder in trailing-icon is a RECTANGLE, not a swappable icon instance. Open

C6 Open

Code Connect mappings — No CLI mappings registered yet. Blocked by C2 (property naming) and C6 (icon quality). Open

C7 Open

Menu Grid FixNeeds RefinementComponent link

Dashboard service grid — a 336px-wide layout container that arranges Service Item instances (icon + label) in a configurable grid. 20 variants combine Row (2/3/4/5) and Column (1/2/3/4/5). Used for service shortcuts on dashboard surfaces (Send Money, Pay Bills, Cash In, etc.).

Open issues remain

Variant property values use pseudo-numeric strings ("by 4") instead of integers (C2). Service Item only ships an active color set — no pressed/disabled tokens (C5). Code Connect mappings not yet registered (C7).

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns. Menu Grid sits on the dashboard as the primary service shortcut surface — typically Row=2, Column=4 (8 services) on the home screen.

Live Preview

Toggle Row × Column to see the grid recalculate. Each cell is a Service Item (icon + label).

Properties

Row

Column

DS Health

Reusable

Pass

Used on dashboard surfaces and any screen needing a uniform service shortcut grid. 20 row/column combinations cover most layout needs from a single column list to a 5×5 grid.

Self-contained

Pass

Container carries its own background, padding (8h / 10t / 6b), gap (4×4), and bottom radius (6). All values bound to design tokens.

Consistent

Warn

Variant property values are pseudo-numeric strings ("by 4") instead of clean integer enums. Should be rows: 4 / columns: 4 for native parity. C2

Composable

Pass

Cleanly composes Service Item instances (node 17787:1700). Service Item is a separate canonical component — icon and label are easily overridable per cell.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	Row × Column	Active state only — uses `dashboard/service-item/color/active/{icon,label}`
Pressed	N/A	N/A	—	No pressed token defined for Service Item. Native may need to derive from icon brand color. C5
Disabled	N/A	N/A	—	No disabled token defined. C5

Menu Grid is a layout container; tap behavior lives on each Service Item child.

Open Issues

Variant property values use pseudo-numeric strings — Row="by 4", Column="by 4". Should be plain integers (rows: 4, columns: 4) for clean native enum/int mapping. C2
Service Item only defines an active color set. No pressed or disabled color tokens — engineers must invent these on native. C5
Code Connect CLI mappings not registered. C7

Variants

20 variants formed by Row (2/3/4/5) × Column (1/2/3/4/5). All share the same 336px container width, 4×4 gap, and 8/10/6 padding. Cell count=Row × Column.

Row 2 × Column 4 — 8 services (most common)

The default dashboard layout — 2 rows × 4 columns=8 services. Used on the home dashboard for primary service shortcuts.

Row 4 × Column 4 — 16 services

Expanded grid for "All Services" sheets — 4 rows × 4 columns=16 services. Used on category pages or full-list views.

Row 5 × Column 5 — 25 services (max)

Maximum density — 5 rows × 5 columns=25 services. Use sparingly; label legibility tightens at this density.

Colors by State

Service Item ships only the active color set. Pressed and disabled are not yet defined at the token layer — see C5 in the Open Issues.

Role	Token	Value
Container bg	bg/color-bg-main	#FFFFFF
Service icon	dashboard/service-item/color/active/icon	#005CE5
Service label	dashboard/service-item/color/active/label	#072592
Border (weak)	border/color-border-weak	#E5EBF4

Layout

Property	Token	Value
Container width	—	336px (fixed)
Padding (horizontal)	space/space-8	8px
Padding (top)	space/space-10	10px
Padding (bottom)	space/space-6	6px
Cell gap (row & col)	space/space-4	4px
Bottom radius	radius/radius-2	6px
Service Item min-width	—	64px
Service Item icon container	—	40 × 40
Icon padding	space/space-4	4px
Icon → label gap	space/space-6	6px

Typography (Service Item Label)

Property	Value
DS text style	Primary/Label/Fine
Font	Proxima Soft
Weight	700 (Bold)
Size	12px
Line height	12px
Tracking	+0.5
Alignment	center

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:menu-grid:1.0.0")
}

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
Row="by N"	rows: Int	rows: Int	Native takes a plain integer; Figma string parsed to N
Column="by N"	columns: Int	columns: Int	Same — integer parameter
Service Item (instance)	items: [EBServiceItem]	items: List<EBServiceItem>	Each cell is a Service Item with icon + label

SwiftUI

ios/Components/MenuGrid/EBMenuGrid.swift

Jetpack Compose

android/components/menugrid/EBMenuGrid.kt

Usage Snippets Planned API

// Default dashboard grid — 2 rows × 4 columns
EBMenuGrid(columns: 4, items: services)

// Service Item child
EBServiceItem(
    icon: Image("send-money"),
    label: "Send Money",
    action: { /* tap */ }
)

// Default dashboard grid — 2 rows × 4 columns
EBMenuGrid(
    columns = 4,
    items = services
)

// Service Item child
EBServiceItem(
    icon = painterResource(R.drawable.send_money),
    label = "Send Money",
    onClick = { /* tap */ }
)

Requirement	iOS	Android
Tap target	Service Item is 64+ px wide × ~64 px tall — meets HIG 44pt minimum	Meets Material 48dp minimum
Accessibility label	`.accessibilityLabel(label)` on each item	`contentDescription=label`
Grid semantics	Container exposes grid traits via `LazyVGrid`	`LazyVerticalGrid` announces row/column position
Disabled state	Currently undefined — needs token + `.disabled(true)` handling	Currently undefined — needs token + `enabled=false`

Usage Guidelines

Do

Use Row=2 × Column=4 for the primary dashboard surface — 8 services is the established home pattern.

Don't

Use Row=5 × Column=5 unless density is essential — 25 cells reduces label legibility.

Do

Pair Menu Grid with a section heading or container card so users understand the grouping.

Don't

Mix icon styles within a single grid — keep all Service Item icons in the same vector style.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Semantic names: `Service Item`, `icon-container`, `Label`. No Frame/Group debris.
C2	Variant & Property Naming	Needs Fix	Property values are pseudo-numeric strings (`"by 4"`) instead of integers. Native takes `Int`.
C3	Token Coverage	Ready	All colors, spacing, radii, and typography bound to tokens.
C4	Native Mappability	Partial	Maps to `LazyVGrid` / `LazyVerticalGrid`. The 20-variant matrix is Figma-only — native uses one component with two int props.
C5	Interaction State Coverage	Needs Fix	Only `active` token defined. No `pressed` or `disabled` color tokens for Service Item.
C6	Asset & Icon Quality	Ready	Icon container is a vector instance, token-bound color.
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Variants Inventory (20 total)

4 Row × 5 Column=20 variants. All variants share the same 336px container, 4×4 cell gap, and Service Item child.

Row	Columns	Cell range	Count
by 2	by 1, 2, 3, 4, 5	2 – 10	5
by 3	by 1, 2, 3, 4, 5	3 – 15	5
by 4	by 1, 2, 3, 4, 5	4 – 20	5
by 5	by 1, 2, 3, 4, 5	5 – 25	5

View full Row × Column breakdown (20 rows)

Row	Column	Cells	Node ID
by 2	by 1	2	18320:14413
by 2	by 2	4	18320:14407
by 2	by 3	6	18320:14398
by 2	by 4	8	18320:14371
by 2	by 5	10	18320:14383
by 3	by 1	3	18320:14423
by 3	by 2	6	18320:14416
by 3	by 3	9	18320:14563
by 3	by 4	12	18320:14550
by 3	by 5	15	18320:14534
by 4	by 1	4	18320:14503
by 4	by 2	8	18320:14477
by 4	by 3	12	18320:14448
by 4	by 4	16	18320:14333
by 4	by 5	20	18320:14350
by 5	by 1	5	18320:14497
by 5	by 2	10	18320:14486
by 5	by 3	15	18320:14461
by 5	by 4	20	18320:14427
by 5	by 5	25	18320:14508

1.0.0 — April 2026 Initial

Initial Assessment · node 18320:14332

Component assessed — 20 variants formed by Row × Column (Row 2/3/4/5, Column 1/2/3/4/5). Layout container of Service Item children. 336px fixed width. Documented

Initial

Variant property values are strings, not integers — Row="by 4", Column="by 4". Native takes Int; the string prefix forces parsing. Open

C2 Open

Service Item missing pressed/disabled tokens — Only dashboard/service-item/color/active/{icon,label} defined. Other states must be improvised. Open

C5 Open

Code Connect mappings — No CLI mappings registered yet. Open

C7 Open

Recipient Field FixNeeds RefinementComponent link

A GCash-specific two-line input field for recipient/contact entry in money transfer flows (Send Money, Pay Bills, etc.). 8 variants across State (Default/Active/Error/Disabled) × isFilled (true/false). Features a small label on top, value/placeholder below, and two trailing action icons. Notably taller than other Form Elements at 56px (vs 46px for Input Field, Labeled Field, etc.) with 6px corner radius.

Fix required before handoff

Both trailing icons are non-swappable rectangles (C6). This blocks direct native property mapping for icon slots.

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle state and fill to see the recipient field update in real time. Note the 56px height (taller than the standard 46px form field).

Properties

State

isFilled

DS Health

Reusable

Partial

Specific to recipient/contact entry in money transfer flows (Send Money, Pay Bills). Not a general-purpose field — the two-line layout with trailing icon pair is domain-specific.

Self-contained

Pass

Carries its own border, fill, label, and text styles per state. All 4 interaction states defined. 56px height, 6px corner radius. Disabled state has distinct background.

Consistent

Partial

isFilled now uses true/false (C2 fixed). Value layer renamed to #value (C1 fixed) — now consistent with sibling fields.

Composable

Warn

Trailing icons are icon-placeholder RECTANGLEs (C6) — not swappable icon instances. Cannot compose different icon actions (phonebook, scan QR) without editing the component.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	State=Default	Gray #D7E0EF border, white bg. Label + placeholder/value visible.
Active (Focused)	Yes	Yes	State=Active	Blue #005CE5 border.
Error	Yes	Yes	State=Error	Red #D61B2C border.
Disabled	Yes	Yes	State=Disabled	#EEF2F9 bg, border hidden. Muted label and text.

Resolved Issues

isFilled property renamed from Yes/No to true/false — now maps directly to Swift Bool / Kotlin BooleanC2 Fixed
Text layer renamed from #text-placeholder to #value — now consistent with sibling fields (Input Field, Labeled Field) C1 Fixed
Both trailing icons use shared Placeholder component instances — swappable by design. Internal RECTANGLE is the default visual, replaced by designers when consuming the component C6 Closed

Open Issues

Code Connect CLI mappings not registered C7

States

8 variants across 2 axes: State (Default/Active/Error/Disabled) × isFilled (true/false). All share the same container with 6px corner radius. Height is 56px — taller than other Form Elements (46px) to accommodate the two-line label + value layout.

Default

Idle state with gray border. Two-line layout: small label above, value/placeholder below. Two trailing icon placeholders.

Properties

StateDefault

isFilled

Active (Focused)

Focused state with blue border indicating active input.

Properties

StateActive

isFilled

Error

Validation error state with red border.

Properties

StateError

isFilled

Disabled

Non-interactive state with gray background and hidden border. Muted label and text colors.

Properties

StateDisabled

isFilled

Colors by State

All states share the same two-line container (56px height, 6px radius). Border color is the primary state indicator. Two trailing icon placeholders use a fixed fill across all states.

Role	Token	DEFAULT	ACTIVE	ERROR	DISABLED
Border	field/border	#D7E0EF	#005CE5	#D61B2C	hidden
Background	field/bg	#FFFFFF	#FFFFFF	#FFFFFF	#EEF2F9
Label text	field/label	#0A2757	#0A2757	#0A2757	#90A8D0
Value (filled)	field/text/filled	#0A2757	#0A2757	#0A2757	#90A8D0
Value (empty)	field/text/placeholder	#90A8D0	#90A8D0	#90A8D0	#C2CFE5
Icon placeholder	field/icon	#C2C6CF	#C2C6CF	#C2C6CF	#C2C6CF

Layout

Height	56px (vs 46px standard)
Corner radius	6px
Border	1px stroke
Icon group	68 × 32px
Icon size	32 × 32px each
Icon radius	41px (circular)

Typography

#label (top line)
Font	Proxima Soft Semibold
Size	12px
Tracking	0.5
#text-placeholder (bottom line)
Font	Proxima Soft Semibold
Size	14px
Tracking	0.25

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:form-elements:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.form.*  // Compose

Package not yet published. These are the planned distribution paths.

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
isFilled (true/false)	text: Binding<String>	value: String	Derived from text content
#label	label: String	label: String	Small top label (12px)
#text-placeholder	placeholder: String	placeholder: String	Value text or placeholder (14px)
icon-group (2x icons)	trailingIcons: [Image]	trailingIcons: @Composable	Two action icon slots
State=Default	—	—	Default idle state
State=Active	.focused()	interactionSource	Keyboard active
State=Error	.ebError(true)	isError=true	Validation failed
State=Disabled	.disabled(true)	enabled=false	Non-interactive

SwiftUI

ios/Components/FormElements/EBRecipientField.swift

Jetpack Compose

android/components/form/EBRecipientField.kt

Usage Snippets Planned API

Default

EBRecipientField(
    label: "Mobile Number",
    text: $recipientNumber,
    placeholder: "Enter number or name",
    trailingIcons: [
        Image(systemName: "person.crop.circle"),
        Image(systemName: "qrcode.viewfinder")
    ]
)

EBRecipientField(
    label = "Mobile Number",
    value = recipientNumber,
    onValueChange = { recipientNumber = it },
    placeholder = "Enter number or name",
    trailingIcons = {
        IconButton(onClick = onContactsClick) {
            Icon(Icons.Default.Person, "Contacts")
        }
        IconButton(onClick = onScanClick) {
            Icon(Icons.Default.QrCode, "Scan QR")
        }
    }
)

Error

EBRecipientField(
    label: "Mobile Number",
    text: $recipientNumber,
    placeholder: "Enter number or name"
)
.ebError(true)

EBRecipientField(
    label = "Mobile Number",
    value = recipientNumber,
    onValueChange = { recipientNumber = it },
    placeholder = "Enter number or name",
    isError = true
)

Disabled

EBRecipientField(
    label: "Mobile Number",
    text: $recipientNumber,
    placeholder: "Enter number or name"
)
.disabled(true)

EBRecipientField(
    label = "Mobile Number",
    value = recipientNumber,
    onValueChange = { recipientNumber = it },
    placeholder = "Enter number or name",
    enabled = false
)

Requirement	iOS	Android
Minimum touch target	44 x 44 pt (56px field exceeds)	48 x 48 dp (56px field exceeds)
Accessibility label	`.accessibilityLabel("Recipient")`	`contentDescription`
Error announcement	VoiceOver reads error via `.accessibilityValue`	TalkBack reads error via `semantics { error() }`
Trailing icon labels	`.accessibilityLabel("Contacts")` per icon	`contentDescription` per icon button

Usage Guidelines

Do

Use Recipient Field for contact/number entry in money transfer flows (Send Money, Pay Bills, Buy Load). The two-line layout with trailing icons is purpose-built for this context.

Don't

Use Recipient Field for general text input — use Input Field or Labeled Field instead. The 56px height and icon slots add unnecessary weight for simple text entry.

Do

Provide meaningful trailing icons (e.g. contacts picker, QR scanner) that match the field's purpose. Both slots should have distinct actions.

Don't

Leave icon placeholders as-is in production — they are design placeholders only. Always replace with real icon instances before handoff.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Layer renamed to `#value`, now consistent with sibling fields.
C2	Variant & Property Naming	Ready	`isFilled=true/false` — correctly uses native boolean values.
C3	Token Coverage	Partial	Colors appear correct but token binding not verified. Icon placeholders use hardcoded #C2C6CF.
C4	Native Mappability	Ready	Maps to custom `EBRecipientField` (SwiftUI + Compose). Two-line layout with trailing icon slots.
C5	Interaction State Coverage	Ready	All 4 states defined: Default, Active, Error, Disabled.
C6	Asset & Icon Quality	Needs Fix	Both trailing icons are `icon-placeholder` RECTANGLEs — not swappable icon instances.
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Code Connect

Aspect	Status	Notes
Property naming	Ready	`isFilled=true/false` — boolean values map directly to native types
Layer naming	Blocked	`#text-placeholder` needs rename to `#value`
Icon slots	Blocked	RECTANGLE placeholders — need swappable icon instances
State coverage	Ready	All 4 states defined
Native component file	Pending	EBRecipientField.swift / EBRecipientField.kt not yet created

Variants Inventory (8 total)

4 State values × 2 isFilled values (true/false).

State	isFilled	Node ID
Default	true	17758:3868
Default	false	17758:3875
Active	true	17758:3882
Active	false	17758:3889
Error	true	17758:3896
Error	false	17758:3903
Disabled	true	17758:3910
Disabled	false	17758:3917

1.2.0 — March 2026 Fix

C1 Resolved · node 17758:3867

#text-placeholder renamed to #value — Value text layer renamed from #text-placeholder to #value. Now consistent with sibling fields (Input Field, Labeled Field) for direct native property mapping. C1 Fixed

C1 Resolved

1.1.0 — March 2026 Fix

C2 Resolved · node 17758:3867

isFilled renamed to true/false — Figma property isFilled updated from Yes/No to true/false. Now maps directly to Swift Bool and Kotlin Boolean for Code Connect. C2 Fixed

C2 Resolved

1.0.0 — March 2026 Initial

Initial Assessment · node 17758:3867

Component assessed — 8 variants documented across State (Default/Active/Error/Disabled) × isFilled (true/false). GCash-specific two-line recipient field with trailing action icons. 56px height (vs 46px standard). Documented

Initial

Boolean property uses Yes/No — isFilled=Yes/No instead of true/false. Incompatible with Swift Bool and Kotlin Boolean for Code Connect mapping. Fixed in 1.1.0

C2 Fixed

Layer naming inconsistency — Value text layer is #text-placeholder instead of #value used by other Form Elements. Fixed in 1.2.0

C1 Fixed

Non-swappable icon placeholders — Both trailing icons are icon-placeholder RECTANGLEs, not component instances. Open

C6 Open

Code Connect mappings — No CLI mappings registered yet. Blocked by C1 and C6 issues. Open

C7 Open

Select Field FixNeeds RefinementComponent link

A currency/amount selection field specific to GCash. Includes a peso sign, label, value text, Philippine flag indicator, and a chevron down affordance. 8 variants across State (Default/Active/Error/Disabled) × isFilled (true/false). Part of the Form Elements group — used for currency and amount selection contexts.

Fix required before handoff

Peso sign uses BOOLEAN_OPERATION instead of vector (C6). Flag uses raster IMAGE fill (C6). These block clean native mapping.

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle state and fill to see the select field update in real time.

Properties

State

isFilled

DS Health

Reusable

Partial

Currency/amount selection pattern used across Send Money, Buy Load, Pay Bills, and other GCash flows. Tightly coupled to Philippine peso — not generalizable to other currencies without modification.

Self-contained

Pass

Carries its own border, fill, peso sign, flag, and chevron per state. All 4 interaction states defined with distinct visual treatment. Disabled state has separate background.

Consistent

Partial

isFilled now uses true/false (C2 fixed). Peso sign still uses shape_full BOOLEAN_OPERATION instead of a clean vector (C6).

Composable

Pass

Nests cleanly in form layouts alongside Input Field, Labeled Field, and Recipient Field. Chevron down signals tappable selection affordance.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	State=Default	Gray #D7E0EF border, white bg. Peso sign #183462.
Active (Focused)	Yes	Yes	State=Active	Blue #005CE5 border.
Error	Yes	Yes	State=Error	Red #D61B2C border.
Disabled	Yes	Yes	State=Disabled	#EEF2F9 bg, border hidden. Peso sign #7E96BE.

Resolved Issues

isFilled renamed from Yes/No to true/false for direct Swift Bool / Kotlin Boolean mapping C2 Fixed
Peso Sign shape_full BOOLEAN_OPERATION flattened to a single vector path across all 8 variants C6 Fixed
Field Trailing Flag replaced from raster IMAGE fill to vector SVG across all 8 variants C6 Fixed

Open Issues

Code Connect CLI mappings not registered C7

States

8 variants across 2 axes: State (Default/Active/Error/Disabled) × isFilled (true/false). All share the same 46px height container with 6px corner radius. Includes peso sign (15×15), label/value text, Philippine flag (25×16), and chevron down (32×32).

Default

Idle state with gray border. Peso sign in dark navy, flag visible, chevron down affordance.

Properties

StateDefault

isFilled

Active (Focused)

Focused state with blue border indicating active selection.

Properties

StateActive

isFilled

Error

Validation error state with red border.

Properties

StateError

isFilled

Disabled

Non-interactive state with gray background, hidden border, and muted peso sign.

Properties

StateDisabled

isFilled

Colors by State

All states share the same container structure. Border color is the primary state indicator. Peso sign and text colors shift in disabled state.

Role	Token	DEFAULT	ACTIVE	ERROR	DISABLED
Border	field/border	#D7E0EF	#005CE5	#D61B2C	hidden
Background	field/bg	#FFFFFF	#FFFFFF	#FFFFFF	#EEF2F9
Label text	field/text/label	#0A2757	#0A2757	#0A2757	#0A2757
Value (filled)	field/text/filled	#0A2757	#0A2757	#0A2757	#90A8D0
Value (empty)	field/text/placeholder	#90A8D0	#90A8D0	#90A8D0	#C2CFE5
Peso sign	field/icon/peso	#183462	#183462	#183462	#7E96BE

Layout

Property	Value
Height	46px
Corner radius	6px
Peso sign size	15 × 15
Flag size	25 × 16
Flag corner radius	2px
Chevron size	32 × 32

Typography

Layer	Property	Value
#label	Font	Proxima Soft Semibold
#label	Size	16px
#value	Font	Proxima Soft
#value	Size	14px

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:form-elements:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.form.*  // Compose

Package not yet published. These are the planned distribution paths.

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
isFilled (true/false)	selection: Binding<String?>	selectedValue: String?	Derived from selection content
State=Default	—	—	Default idle state
State=Active	.focused()	interactionSource	Selection active
State=Error	.ebError(true)	isError=true	Validation failed
State=Disabled	.disabled(true)	enabled=false	Non-interactive

SwiftUI

ios/Components/FormElements/EBSelectField.swift

Jetpack Compose

android/components/form/EBSelectField.kt

Usage Snippets Planned API

Default

EBSelectField("Amount", selection: $amount)

EBSelectField(
    label = "Amount",
    selectedValue = amount,
    onValueChange = { amount = it }
)

Error

EBSelectField("Amount", selection: $amount)
    .ebError(true)

EBSelectField(
    label = "Amount",
    selectedValue = amount,
    onValueChange = { amount = it },
    isError = true
)

Disabled

EBSelectField("Amount", selection: $amount)
    .disabled(true)

EBSelectField(
    label = "Amount",
    selectedValue = amount,
    onValueChange = { amount = it },
    enabled = false
)

Requirement	iOS	Android
Minimum touch target	44 x 44 pt	48 x 48 dp
Accessibility label	`.accessibilityLabel("Select amount")`	`contentDescription`
Role hint	`.accessibilityHint("Double tap to select")`	`semantics { role=Role.DropdownList }`
Error announcement	VoiceOver reads error via `.accessibilityValue`	TalkBack reads error via `semantics { error() }`

Usage Guidelines

Do

Use Select Field for currency amount selection where the peso sign and flag indicator provide essential context for the user.

Don't

Use Select Field for free-text entry — use Input Field instead. Select Field is for predefined selection only.

Do

Show error state with a helper text message below the field explaining the validation issue (e.g. "Minimum amount is 1.00").

Don't

Hide the peso sign or flag — these are essential visual cues that distinguish this field from a generic dropdown.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Semantic layer names: `container`, `peso-sign`, `text-container`, `flag-container`, `Chevron Down`.
C2	Variant & Property Naming	Ready	`isFilled=true/false` — correct boolean convention for native mapping.
C3	Token Coverage	Partial	Colors appear correct but token binding not fully verified.
C4	Native Mappability	Ready	Maps to custom `EBSelectField` (SwiftUI) / `EBSelectField` (Compose).
C5	Interaction State Coverage	Ready	All 4 states defined: Default, Active, Error, Disabled.
C6	Asset & Icon Quality	Needs Fix	Peso sign uses `shape_full` BOOLEAN_OPERATION (not a vector). Flag uses raster IMAGE fill.
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Code Connect

Aspect	Status	Notes
Property naming	Ready	`isFilled=true/false` — boolean convention now correct for Code Connect mapping
Asset quality	Blocked	Peso sign BOOLEAN_OPERATION and raster flag need replacement
State coverage	Ready	All 4 states defined
Native component file	Pending	EBSelectField.swift / EBSelectField.kt not yet created

Variants Inventory (8 total)

4 State values × 2 isFilled values (true/false).

State	isFilled	Node ID
Default	true	17758:3787
Default	false	17758:3797
Active	true	17758:3807
Active	false	17758:3817
Error	true	17758:3827
Error	false	17758:3837
Disabled	true	17758:3847
Disabled	false	17758:3857

1.1.0 — March 2026 Update

C2 Fix — isFilled boolean naming · node 17758:3786

isFilled renamed from Yes/No to true/false — Figma component now uses correct boolean convention. Enables direct Swift Bool / Kotlin Boolean mapping for Code Connect. Fixed

C2 Fixed

1.0.0 — March 2026 Initial

Initial Assessment · node 17758:3786

Component assessed — 8 variants documented across State (Default/Active/Error/Disabled) × isFilled (true/false). Currency/amount selection field with peso sign, flag, and chevron. Part of Form Elements group. Documented

Initial

Boolean property uses Yes/No — isFilled=Yes/No instead of true/false. Incompatible with Swift Bool and Kotlin Boolean for Code Connect mapping. Fixed in 1.1.0

C2 Fixed

Peso sign uses BOOLEAN_OPERATION — shape_full is a BOOLEAN_OPERATION, not a clean vector path. May render inconsistently on native platforms. Open

C6 Open

Flag uses raster IMAGE fill — Philippine flag in flag-container uses a raster IMAGE fill instead of a vector. May degrade on high-density displays. Open

C6 Open

Code Connect mappings — No CLI mappings registered yet. Blocked by C6 (asset quality). Open

C7 Open

Title Bar Component link

An app-level navigation title bar used at the top of every screen. Includes an iOS status bar stub (44px), a centered title row with optional leading icon (back arrow), trailing icon, leading control ("Done" text), subtext (URL), and an optional title block for large headers. 20 variants across 5 boolean properties. Background is brand blue (#1972F9), all text and icons white.

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns.

Live Preview

Toggle properties to see the title bar update in real time.

Properties

leading icon

trailing icon

leading control

subtext

title block

DS Health

Reusable

Pass

Navigation title bar used across every screen in the app. Boolean property toggles cover all common configurations: back arrow, trailing action, subtext URL, CTA control, and large header block.

Self-contained

Pass

Carries its own status bar stub, title row, icon slots, subtext, and optional header block. Background color and all text/icon colors are token-bound. No external dependencies.

Consistent

Partial

Boolean properties use yes/no instead of true/false (C2). leading control only available when leading icon=yes and trailing icon=no -- implicit dependency not expressed in property schema.

Composable

Pass

Fits as the top element on any screen. Nests below the system status bar. Content area sits directly below the title bar. Title block expands naturally when toggled on.

Behavior

State	iOS	Android	Figma Property	Notes
Default	Yes	Yes	5 boolean properties	Navigation bar. No interaction states beyond tap targets on icons and control text.

Title Bar is a navigation container. Interaction states (pressed, focused) apply to the individual tap targets (leading icon, trailing icon, leading control) rather than the bar itself. These states are not represented as separate variants in the component.

Open Issues

Boolean properties (leading icon, trailing icon, leading control, subtext, title block) use yes/no instead of true/false -- incompatible with Swift Bool and Kotlin BooleanC2
Trailing icon uses icon-placeholder RECTANGLE (24x24) instead of a swappable icon instance -- blocks native icon slot mapping C6
Code Connect CLI mappings not registered C7

Configurations

20 variants across 2 structural configurations: Standard (no title block, 10 variants) and With Title Block (titleBlock=yes, 10 variants). Each configuration has the same 10 boolean property combinations for leading icon, trailing icon, leading control, and subtext.

Standard

DESDEV

Standard title bar without title block. Status bar (44px) + title row with optional icons, control, and subtext. Height ranges from 84px to 100px depending on subtext.

Properties

leading icon

trailing icon

leading control

subtext

Properties

leading iconyes

trailing iconno

leading controlno

subtextno

title blockno

With Title Block

DESDEV

Title bar with expanded header block (72px) below the title row. Used for screens with prominent section headers. Adds "Header" text at 26px Semibold.

Properties

leading icon

trailing icon

leading control

subtext

Properties

leading iconyes

trailing iconno

leading controlno

subtextno

title blockyes

Colors by State

Single color scheme -- no appearance modes. All colors bound to main/title-bar/color/ tokens. Display/navigation component with no state-driven color changes.

Role	Token	Value
Background	main/title-bar/color/bg	#1972F9
Title label	main/title-bar/color/label-title	#FFFFFF
Header label	main/title-bar/color/label-header	#FFFFFF
Subtext / URL	main/title-bar/color/label-url	#F6F9FDCC (80% opacity)
CTA text	main/title-bar/color/label-cta	#FFFFFF
Icon	main/title-bar/color/icon	#FFFFFF

Layout

Property	Value
Status bar height	44px
Title row padding H	20px
Title row padding V	12px
Leading icon size	24 x 24
Trailing icon size	24 x 24
Title block height	72px
Title block padding H	24px
Total height (no subtext, no block)	~84px
Total height (with subtext, no block)	~100px
Total height (with block)	~156--172px

Typography

Layer	Text Style	Font	Size	Tracking	Line-height
Title	Primary/Label/Light/Base	Proxima Soft Semibold	16px	0.25px	16px
Subtext	Primary/Label/Light/Fine	Proxima Soft Semibold	12px	0.5px	12px
Header	Primary/Headlines/Light/Area	Proxima Soft Semibold	26px	0.85px	31px
CTA (control)	Primary/Label/Light/Small	Proxima Soft Semibold	14px	0.25px	14px

Installation Planned API

iOS -- Swift Package Manager

// In Xcode: File -> Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android -- Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:titlebar:1.0.0")
}

Import

import EastBlueDS  // SwiftUI
import com.eastblue.ds.titlebar.*  // Compose

Package not yet published. These are the planned distribution paths.

Property Mapping

Figma Property	SwiftUI	Compose	Notes
leading icon (yes/no)	.ebLeadingIcon(Image?)	leadingIcon: @Composable (() -> Unit)?	Back arrow, optional
trailing icon (yes/no)	.ebTrailingIcon(Image?)	trailingIcon: @Composable (() -> Unit)?	Action icon, optional
leading control (yes/no)	.ebLeadingControl("Done")	leadingControlText: String?	CTA text, replaces trailing icon
subtext (yes/no)	.ebSubtext("m.gcash.com")	subtext: String?	URL or secondary text below title
title block (yes/no)	.ebTitleBlock("Header")	titleBlock: String?	Large header below title row

SwiftUI

ios/Components/TitleBar/EBTitleBar.swift

Jetpack Compose

android/components/titlebar/EBTitleBar.kt

Usage Snippets Planned API

Basic (title only)

EBTitleBar("Send Money")

EBTitleBar(
    title = "Send Money"
)

With back arrow

EBTitleBar("Send Money")
    .ebLeadingIcon(Image(systemName: "arrow.left"))

EBTitleBar(
    title = "Send Money",
    leadingIcon = { Icon(Icons.Default.ArrowBack, "Back") }
)

Full configuration

EBTitleBar("GCash")
    .ebLeadingIcon(Image(systemName: "arrow.left"))
    .ebTrailingIcon(Image(systemName: "ellipsis"))
    .ebSubtext("m.gcash.com")
    .ebTitleBlock("My Wallet")

EBTitleBar(
    title = "GCash",
    leadingIcon = { Icon(Icons.Default.ArrowBack, "Back") },
    trailingIcon = { Icon(Icons.Default.MoreVert, "More") },
    subtext = "m.gcash.com",
    titleBlock = "My Wallet"
)

With leading control

EBTitleBar("Edit Profile")
    .ebLeadingIcon(Image(systemName: "arrow.left"))
    .ebLeadingControl("Done")

EBTitleBar(
    title = "Edit Profile",
    leadingIcon = { Icon(Icons.Default.ArrowBack, "Back") },
    leadingControlText = "Done"
)

Requirement	iOS	Android
Minimum touch target	44 x 44 pt (icons and control)	48 x 48 dp (icons and control)
Back button label	`.accessibilityLabel("Back")`	`contentDescription="Navigate back"`
Trailing icon label	`.accessibilityLabel("More options")`	`contentDescription="More options"`
Heading semantics	`.accessibilityAddTraits(.isHeader)` on title	`semantics { heading() }` on title

Usage Guidelines

Do

Use EBTitleBar as the top-level navigation element on every screen. Keep the title short and descriptive.

Don't

Nest a title bar inside scrollable content or use it as a section header within a page -- use a section heading component instead.

Do

Use the title block for high-level section headers like "My Wallet" or "Dashboard" where the large text reinforces the current context.

Don't

Show both trailing icon and leading control simultaneously -- they occupy the same trailing slot. Use one or the other.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Semantic layer names: `title`, `Title Bar`, `title-block`, `Leading Icon`, `Placeholder`.
C2	Variant & Property Naming	Needs Refinement	All 5 boolean properties use `yes/no` instead of `true/false`. `leading control` has implicit dependency on other properties.
C3	Token Coverage	Ready	All 6 color roles bound to `main/title-bar/color/` tokens.
C4	Native Mappability	Ready	Maps to `NavigationBar` (iOS) / `TopAppBar` (Android, Material 3).
C5	Interaction State Coverage	Ready	Navigation bar -- no interaction states needed beyond individual tap targets on icons and control.
C6	Asset & Icon Quality	Needs Refinement	Trailing icon uses `icon-placeholder` RECTANGLE instead of a swappable icon instance.
C7	Code Connect Linkability	Needs Refinement	No CLI mappings registered yet.

Code Connect

Aspect	Status	Notes
Property naming	Needs Fix	All booleans use `yes/no` -- must be renamed to `true/false` before Code Connect mapping
Asset quality	Needs Fix	Trailing icon placeholder RECTANGLE needs replacement with icon instance
State coverage	Ready	Navigation bar -- no interaction states needed
Native component file	Pending	EBTitleBar.swift / EBTitleBar.kt not yet created

Variants Inventory (20 total)

5 boolean properties (leading icon, trailing icon, leading control, subtext, title block) with implicit constraints yield 20 variants: 10 without title block + 10 with title block.

title block	Combinations covered	Count
no	10 combos of leading/trailing icon + leading control + subtext	10
yes	Same 10 combos with title block enabled	10

View full property combination breakdown (20 rows)

leading icon	trailing icon	leading control	subtext	title block	Node ID
no	no	no	no	no	23:175149
no	no	no	yes	no	23:175365
no	yes	no	no	no	23:175415
no	yes	no	yes	no	23:175427
yes	yes	no	no	no	23:175377
yes	yes	no	yes	no	23:175389
yes	no	no	no	no	23:175487
yes	no	no	yes	no	23:175499
yes	no	yes	no	no	23:175449
yes	no	yes	yes	no	23:175461
no	no	no	no	yes	23:175159
no	no	no	yes	yes	23:175169
no	yes	no	no	yes	23:175179
no	yes	no	yes	yes	23:175189
yes	yes	no	no	yes	23:175199
yes	yes	no	yes	yes	23:175209
yes	no	no	no	yes	23:175219
yes	no	no	yes	yes	23:175229
yes	no	yes	no	yes	23:175239
yes	no	yes	yes	yes	23:175249

1.0.0 -- April 2026 Initial

Initial Assessment -- node 23:175148

Component assessed -- 20 variants documented across 5 boolean properties: leading icon, trailing icon, leading control, subtext, title block. App navigation title bar with brand blue background and white text/icons. All colors bound to main/title-bar/color/ tokens. Documented

Initial

Boolean properties use yes/no -- All 5 boolean properties (leading icon, trailing icon, leading control, subtext, title block) use yes/no instead of true/false. Incompatible with Swift Bool and Kotlin Boolean for Code Connect mapping. Open

C2 Open

Trailing icon uses placeholder RECTANGLE -- icon-placeholder is a 24x24 RECTANGLE instead of a swappable icon instance from the DS icon library. Blocks native icon slot mapping. Open

C6 Open

Code Connect mappings -- No CLI mappings registered yet. Blocked by C2 (boolean naming) and C6 (placeholder icon). Open

C7 Open

Visual Popup FixNeeds RefinementComponent link

A modal with a hero image, title, description, and one or more CTAs. Used to display additional information, gather user input, or seek confirmation for critical actions. 3 variants: Default (single CTA), 2 CTA (primary + secondary), Version 2 (preamble, close icon, content-first layout for onboarding).

Open issues remain

Variant naming mixes paradigms — Default / 2 CTA / Version 2 (C2). Hero image is a raster placeholder with "Replace me" overlay instead of a swappable image slot (C6). No destructive/error/loading state coverage (C5). Code Connect mappings not registered (C7).

In Context

Contexts are illustrative. Final screens will reference actual GCash patterns. Visual Popup overlays the app surface to confirm critical actions or onboard users to a new feature.

Live Preview

Toggle Type to see each variant. Hero image, title, description, and CTA(s) update accordingly.

Properties

Type

DS Health

Reusable

Pass

Three layouts cover info modals, confirmation prompts (single + dual CTA), and onboarding popups (Version 2). Fixed 320 / 312 px width fits standard mobile dialog patterns.

Self-contained

Pass

Carries its own bg (main/modal-popup/color/bg), Shadow/Depth 0, radius/radius-2, and 24px padding. Composes Button instances rather than redefining button styles.

Consistent

Warn

Variant naming mixes three paradigms: Default (generic), 2 CTA (count), Version 2 (version). Native enums need a single semantic axis — e.g. single-cta / dual-cta / dismissible. C2

Composable

Pass

All CTAs are real Button instances. Close icon (V2) is a vector instance. Hero image is the only non-component child — see C6.

Behavior

State	iOS	Android	Figma Property	Notes
Single CTA	Yes	Yes	Type=Default	Hero (180px) + title + description + primary CTA. Use for info or single-action confirm.
Dual CTA	Yes	Yes	Type=2 CTA	Adds a secondary outline + tertiary text button below primary. Use for cancel/confirm pairs.
Dismissible (V2)	Yes	Yes	Type=Version 2	Preamble label + title with close icon + content-first layout. Use for onboarding/tutorial popups.
Destructive / Error / Loading	N/A	N/A	—	No variants for destructive confirms or async/loading states. C5

Open Issues

Variant naming mixes paradigms — Default (generic), 2 CTA (count), Version 2 (version). Native enum mapping needs one semantic axis. Suggested: single-cta / dual-cta / dismissible. C2
No destructive/error/loading state coverage — engineers must improvise these for "Cancel transaction?", error confirms, and async submit flows. C5
Hero image is a flat raster placeholder with a "Replace me" overlay. Should be a swappable Image slot (component instance) so product teams override per-popup without editing the master. C6
Code Connect CLI mappings not registered. C7

Variants

3 layouts. Default and 2 CTA share the same hero-on-top structure; Version 2 inverts to content-first with the hero embedded inside a light-gray container.

Default — single primary CTA

Hero image (320 × 180, 16:9) + title + 2-line description + single primary CTA. Use for informational modals or single-action confirms ("Okay").

2 CTA — primary outline + tertiary text

Same hero + title + description as Default, then a secondary outline button on top of a tertiary text button. Use for confirm/cancel pairs.

Version 2 — preamble + close icon, content-first

Onboarding/tutorial layout. The popup itself is a single light-gray (bg/color-bg) container — preamble label, title with close icon, description, a 280×180 hero image with 10px radius, then primary CTA. (The outer white frame has zero padding, so only the gray container is visible.)

Colors by Variant

Modal popup ships display-only color tokens — no pressed/disabled states (the popup itself doesn't have interaction states; CTAs handle that via Button tokens).

Role	Token	Value
Modal background	main/modal-popup/color/bg	#FFFFFF
Title label	main/modal-popup/color/label	#0A2757
Description label	main/modal-popup/color/label-primary	#6780A9
Preamble (V2)	main/modal-popup/color/label-preamble	#90A8D0
Close icon (V2)	main/modal-popup/color/icon-close	#6780A9
V2 inner container	bg/color-bg	#F6F9FD

Layout

Property	Token	Value
Default / 2 CTA width	—	320px
Version 2 width	—	312px
Hero image (Default / 2 CTA)	—	320 × 180 (16:9)
Hero image (V2)	—	280 × 180, 10px radius
Body padding	space/space-24	24px
CTA group padding (vertical)	space/space-24	24px
2 CTA gap between buttons	space/space-8	8px
V2 inner container padding	space/space-16	16px h, 16t / 24b
Corner radius	radius/radius-2	6px
Shadow	Shadow/Depth 0	0 0 4px #E8EEF2C9
Close icon (V2)	—	24 × 24

Typography

Element	DS text style	Spec
Title	Primary/Headlines/Section	Proxima Soft Bold · 22 / 26
Description	Secondary/Default/Base	BarkAda Medium · 14 / 20
Preamble (V2)	Primary/Label/Tiny	Proxima Soft Bold · 10 / 10 · +0.25
CTA label	Primary/Label/Large	Proxima Soft Bold · 18 / 18 · +0.25

Installation Planned API

iOS — Swift Package Manager

// In Xcode: File → Add Package Dependencies
"https://github.com/AY-Org/eb-ds-ios"

Android — Gradle (Kotlin DSL)

dependencies {
    implementation("com.eastblue.ds:visual-popup:1.0.0")
}

Property Mapping

Figma Property	SwiftUI Param	Compose Param	Notes
Type=Default	.ebKind(.singleCTA)	kind=EBVisualPopupKind.SingleCTA	Hero + title + description + primary CTA
Type=2 CTA	.ebKind(.dualCTA)	kind=EBVisualPopupKind.DualCTA	Adds secondary outline + tertiary text button
Type=Version 2	.ebKind(.dismissible)	kind=EBVisualPopupKind.Dismissible	Preamble + close icon + content-first layout
Hero image (raster)	heroImage: Image	heroImage: Painter	Currently a placeholder; should become a swappable slot
CTA buttons	primary / secondary / tertiary: EBButton	primary / secondary / tertiary: @Composable	Compose Button instances directly

SwiftUI

ios/Components/VisualPopup/EBVisualPopup.swift

Jetpack Compose

android/components/visualpopup/EBVisualPopup.kt

Usage Snippets Planned API

// Default — single CTA
EBVisualPopup(
    title: "Cash In Successful",
    description: "₱500.00 added to your wallet.",
    heroImage: Image("cash-in-success"),
    primary: EBButton("Okay") { /* dismiss */ }
)
.ebKind(.singleCTA)

// 2 CTA — confirm/cancel
EBVisualPopup(
    title: "Cancel transaction?",
    description: "This cannot be undone.",
    heroImage: Image("warning-illustration"),
    primary: EBOutlinedButton("Confirm") { /* confirm */ },
    secondary: EBTextButton("Go Back") { /* dismiss */ }
)
.ebKind(.dualCTA)

// Version 2 — onboarding with close icon
EBVisualPopup(
    preamble: "NEW",
    title: "Save your receipts",
    description: "Tap any transaction to save its receipt.",
    heroImage: Image("receipt-tutorial"),
    primary: EBButton("Got it") { /* dismiss */ },
    onClose: { /* dismiss */ }
)
.ebKind(.dismissible)

// Default — single CTA
EBVisualPopup(
    kind = EBVisualPopupKind.SingleCTA,
    title = "Cash In Successful",
    description = "₱500.00 added to your wallet.",
    heroImage = painterResource(R.drawable.cash_in_success),
    primary = { EBButton("Okay", onClick = { /* dismiss */ }) }
)

// 2 CTA — confirm/cancel
EBVisualPopup(
    kind = EBVisualPopupKind.DualCTA,
    title = "Cancel transaction?",
    description = "This cannot be undone.",
    heroImage = painterResource(R.drawable.warning),
    primary = { EBOutlinedButton("Confirm", onClick = { /* confirm */ }) },
    secondary = { EBTextButton("Go Back", onClick = { /* dismiss */ }) }
)

// Version 2 — onboarding with close icon
EBVisualPopup(
    kind = EBVisualPopupKind.Dismissible,
    preamble = "NEW",
    title = "Save your receipts",
    description = "Tap any transaction to save its receipt.",
    heroImage = painterResource(R.drawable.receipt_tutorial),
    primary = { EBButton("Got it", onClick = { /* dismiss */ }) },
    onClose = { /* dismiss */ }
)

Requirement	iOS	Android
Modal trait / role	Present via `.sheet` or `.alert` — VoiceOver announces as modal	`Dialog` announces as modal; TalkBack focus trapped inside
Focus trap	Automatic with `.sheet`	Automatic with `Dialog` — set `dismissOnClickOutside=false` for confirm popups
Close button label (V2)	`.accessibilityLabel("Close")`	`contentDescription="Close"`
Hero image	If decorative: `.accessibilityHidden(true)`. If informative: provide a label.	Same — `contentDescription=null` for decorative, otherwise describe
Tap targets	CTAs use Button which meets HIG 44pt	CTAs meet Material 48dp
Destructive role	Currently undefined — needs `role: .destructive` when state lands	Currently undefined — needs Button destructive colors when state lands

Usage Guidelines

Do

Use Visual Popup for critical confirms, success states with celebration, and onboarding moments — places where the hero image adds emotional weight.

Don't

Use for inline form errors or transient notifications — those belong in Toast, Banner, or inline error patterns, not a blocking modal.

Do

Use the Default variant when the popup has one obvious next step (Okay, Got it, Continue).

Don't

Use 2 CTA when one button is clearly more important than the other — that's still a Default with the secondary action elsewhere.

Do

Use Version 2 (with close icon) only for onboarding/tutorial popups where the user can dismiss without taking action.

Don't

Add a close icon to confirm/destructive popups — forces the user to consciously choose the CTA.

Criteria Scorecard

ID	Criterion	Status	Notes
C1	Layer Structure & Naming	Ready	Semantic names: `Modals Asset`, `body`, `header`, `CTA - Base Button Group`, `Close`.
C2	Variant & Property Naming	Needs Fix	Property values mix paradigms: `Default` / `2 CTA` / `Version 2`. Should be one semantic axis.
C3	Token Coverage	Ready	All colors, spacing, radii, shadow, and typography bound to tokens.
C4	Native Mappability	Ready	Maps to `.sheet` / `.alert` on iOS and `Dialog` / `AlertDialog` on Android.
C5	Interaction State Coverage	Needs Fix	No destructive, error, or loading variants. Close affordance only on Version 2.
C6	Asset & Icon Quality	Needs Fix	Hero is a flat raster placeholder with "Replace me" overlay. Should be a swappable Image slot.
C7	Code Connect Linkability	Pending	No CLI mappings registered yet.

Variants Inventory (3 total)

Type	Width	Hero	CTAs	Node ID
Default	320px	320 × 180 (raster)	1 primary	30:81517
2 CTA	320px	320 × 180 (raster)	1 outline + 1 text	7995:5265
Version 2	312px	280 × 180 (raster, in container)	1 primary + close icon	30:81515

1.0.0 — April 2026 Initial

Initial Assessment · node 30:81526

Component assessed — 3 variants (Default / 2 CTA / Version 2). Hero image, title, description, CTA(s). Used for confirms, success states, and onboarding popups. Documented

Initial

Variant naming mixes paradigms — Default (generic), 2 CTA (count), Version 2 (version). Should be a single semantic axis (single-cta / dual-cta / dismissible). Open

C2 Open

No destructive/error/loading state — Engineers must improvise these for cancel/delete confirms and async submits. Open

C5 Open

Hero image is a raster placeholder — "Replace me" overlay on a flat Modals Asset image. Should be a swappable Image slot via instance swap. Open

C6 Open

Code Connect mappings — No CLI mappings registered yet. Open

C7 Open
